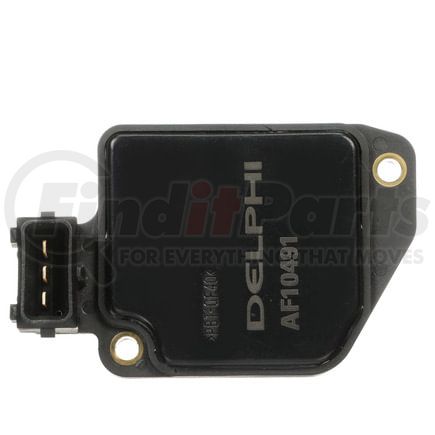

(888) 312-8812 Login SignupDELPHI AF10491 Mass Air Flow Sensor
$17149
Limited availability at this price!
In Stock
Get it by Tuesday, Feb 10
DELPHI AF10491 Part Description
Manufacturer
Product Description
Mass Air Flow Sensor
Features & Benefits
- Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
- Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
- Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
- All parts are calibrated and tested to match the OE part
- Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
- Delphi OE technology validated to match the vehicle applications
DELPHI AF10491 Specifications
Product Attributes
| Item Grade | Premium |
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Color | Black and Silver |
| Housing Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 3 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 80 MM |
| Sensor Casing Width | 49.7 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 62.70 MM |
| Mounting Hole Diameter | 0.1 IN |
| Seal Outside Diameter | 25 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 3.1 IN |
| Sensor Casing Width | 1.9 IN |
| Bolt Hole Center To Bolt Hole Center | 2.40 IN |
| Mounting Hole Diameter | 4.5 MM |
| Seal Outside Diameter | 0.9 IN |
| Intake Air Temperature (IAT) Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 9026802000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| UPC | 00689604285350 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10491 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2133602 |
| Audi | 078 133 471 C |
| BWD | 221048M |
| Beck/Arnley | 158-1546 |
| CARDONE Reman | 74-50029 |
| Dorman | 917-889 |
| GLOBAL PARTS DISTRIBUTORS | 1813216 |
| HITACHI | MAF0021 |
| Hitachi Automotive | AFH70-08CM, MAF0021 |
| N/A | MA1077, 245-1202, 245-2202 |
| NAPA Reman Computers | XTP450029 |
| NGK SPARK PLUGS | MG0165 |
| NTK | MG0165 |
| Spectra Premium | MA129 |
| Standard Motor Products | MAS0239, MF21048 |
| VDO | A2C59512900 |
| Volkswagen | 078 133 471 C |
| WAI | MAF10176T |
| Wells | SU5410 |
DELPHI AF10491 Fits Vehicles
- Volkswagen Passat (1998-2000)
- Audi A6 (1998-1999)
- Audi A6 Quattro (1998-2000)
- Audi A4 (1998-1999)
- Audi A4 Quattro (1998-1999)
