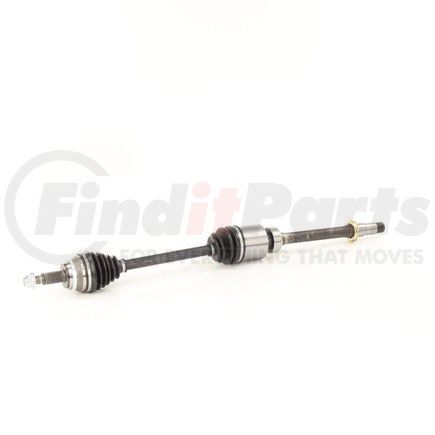

TrakMotive TO8184 - CV Axle Shaft
- Part Number
- TO8184
- Manufacturer
- TRAKMOTIVE
- Description
-
CV Axle Shaft
details
$11799
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
TRAKMOTIVE part description
Product Description
CV Axle Shaft
Product Attributes
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Bolt Hex Size (mm) | N/A |
| Axle Bolt Length (mm) | N/A |
| Axle Bolt Thread Size | N/A |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.5 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22x1.5 |
| Boot Material | Neoprene |
| Inboard Bolt Head Size (in) | N/A |
| Inboard Bolt Head Size (mm) | N/A |
| Inboard Bolt Head Type | N/A |
| Inboard Bolt Length (in) | N/A |
| Inboard Bolt Length (mm) | N/A |
| Inboard Bolt Thread Size | N/A |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 24 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 30 |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Bolt Head Size (mm) | N/A |
| Outboard Bolt Head Type | N/A |
| Outboard Bolt Length (in) | N/A |
| Outboard Bolt Length (mm) | N/A |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 40.39 |
| Overall Compressed Length (mm) | 1026 |
| Axle Nut Socket Size | 32 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Outboard Joint Boot Material | Neoprene |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00844084081841 |
Part Interchanges
- EMPI 80-6326
- USA Industries 7087769
- USA Industries AX-87769
- Diversified Shafts Solutions 656N
- Drive Tech America TO-2208A
- CARDONE Reman 60-5261
- CARDONE Reman 66-5261
- IMC 40751040
- Carquest Premium AC NCV69608
- OEM Part Number 4341008030
- Altrom Group 652478
- ODM TO-8-8647A
- TrakMotive TO-8184
- ProTech TO10537
- NCV69608
- 90658
- MX-19716S
- 329184
TRAKMOTIVE TO8184 Cross Reference
We have 1 alternatives for the TO8184 by TRAKMOTIVE:
Fits Vehicles
- Toyota Sienna (2004-2010)
