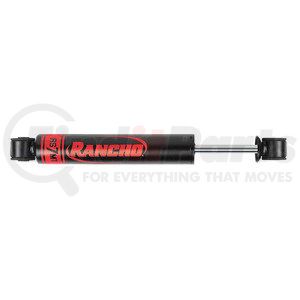

Name: Rancho RS999198 RS9000XL Suspension Shock Absorber
SKU: rs999198
Price: 141.49 USD
Availability: InStock

RANCHO part description

Product Description

RS9000XL Suspension Shock Absorber

Features & Benefits

NINE LEVELS OF PERFORMANCE -- Nine-position easy-to-adjust knob allows customized damping control and firmness for on-road and off-road flexibility
DESIGNED FOR HARDWORKING VEHICLES -- Ideal for stock or lifted trucks, SUVs and Jeeps that tow, haul or go off road
INDUSTRY FIRST -- Recognized as the first nine-position manually adjustable shock series in the off-road market
REDUCES FADE -- Nitrogen gas pressurized to 120 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
STRONG AND DURABLE -- Features an application-specific 18mm nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and 1.25-in. sintered iron piston for enhanced structural integrity
HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248degF
HANDLES EXTREME TEMPERATURE CHANGES -- Up to 2.75-in. tri-tube body (application specific) filled with all-weather fluid allows for cooler operation, increased vehicle control and ability to withstand internal temperatures of -40 to 248°F
SMOOTH PERFORMANCE -- Polyurethane rebound bumper and bushings and graphite-filled fluon-banded piston help absorb ride harshness and enhance responsiveness to changing road conditions for an overall smoother ride
BUILT TO LAST -- Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression while the long-lasting premium liquid metallic finish and polyvinyl protective boot ensures longer life
BUY WITH CONFIDENCE -- Comes with Rancho's Limited Lifetime Warranty
BUY WITH CONFIDENCE -- Comes with Rancho’s Limited Lifetime Warranty

Product Attributes

Compressed Length	15.91 IN
Travel Length	9.17 in
Finish	Painted
Internal Construction Type	Tri Tube
Grade Type	Performance
Extended Length	25.08 in
Adjustable Damping	Yes
Dust Shield Included	Yes
Damping Adjustment Type	Manual
Includes Bump Stop	No
Upper Mount Code	LS47
Lower Mount Code	LS47
Hydraulic Lockout	No
Internal Rebound Bumper	Yes
Body Diameter	2.75
Lower Mount Type	Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Part Description	Shock Absorber
Parts Pack(s)	None
Upper Mount Type	Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Compressed Length	404.1 MM
Extended Length	637 MM
Travel Length	232.9 MM
Shock Stroke	9.17 IN
Shock Stroke	232.9 MM
Lower Mount Code	LS47
Upper Mount Code	LS47
Shock Absorber Rod End Measuring Point	Center of Loop
Shock Absorber Body End Measuring Point	Center of Loop
Gas Charged	Yes
Mounting Hardware Included	No
Body Diameter	2.75 IN
Body Diameter	69.9 MM
Cylinder Outside Diameter	2.75 IN
Cylinder Outside Diameter	69.9 MM
Body Material	Steel
Cylinder Material	Steel
Body Color	Silver
Cylinder Color	Silver
Color	Silver
Cylinder Finish	Painted
Boot Included	Yes
Dust Shield Diameter	2.99 IN
Dust Shield Diameter	75.946 MM
Dust Shield Material	Rubber
Dust Shield Color	Red
Rod Diameter	0.7086614173228346 IN
Rod Diameter	18 MM
Shaft Material	Chromed
Shock Absorber Bore Size	1.2598425196850394 IN
Shock Absorber Bore Size	32 MM
Internal Rebound Spring	No
Type	Telescopic
Active or Passive Suspension	Passive
Adjustable Compression	Yes
Adjustable Rebound	Yes
Valving Type	Progressive
Self-Leveling	No
Adjustable Ride Height	No
Maximum Ride Height Lowering Distance	0 IN
Maximum Ride Height Raising Distance	0 IN
Air Adjustable	No
Air Ride Suspension	No
Bladder(s) Included	No
Bladder Sleeve(s) Included	No
Bladder Heavy Duty Crimping Rings Included	No
New Or Remanufactured	New
Coil Over Springs Included	No
Bearing Plate Included	No
Spring Included	No
Coil Spring Insulator(s) Included	No
Spring Isolators Included	No
Spring Seat Included	No
Remote Reservoir	No
Strut Mount Insulator(s) Included	No
Adjustable Damping	Yes

Additional Information

Country of Origin (Primary)	US
Canadian Harmonizing Tariff Code	8708803000
Harmonized Tariff Code (Schedule B)	8708801600
Harmonized Tariff Code (HTS)	8708801600
MSDS Sheet Number	01164
UPC	00039703091985
VMRS Code	016008003
UNSPSC	25172011
