MSD 8558 Part Description
Manufacturer
Product Description

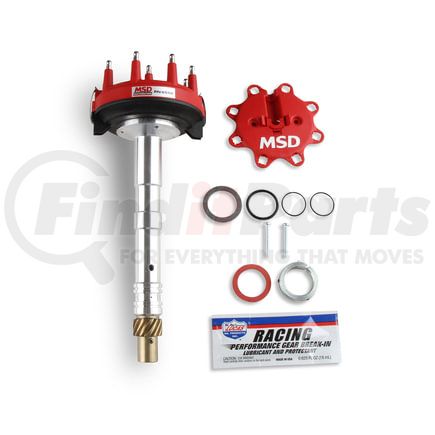

Tall Block Crank Trigger Chevy V8 Distributor
Features & Benefits
- Oversized polished steel shaft with a QPQ coating for friction reduction
- Adjustable slip collar mounting flange for engines with modified deck heights
- CNC machined billet aluminum housing and Dupont Rynite base
- Supplied with bronze gear
- Shaft is guided by a sealed ball bearing and an extra long sintered bushing
- Supplied with large diameter HEI style distributor cap and rotor
- Special oil tract improves lubrication to the distributor and cam gear
- Must be used with an MSD Crank Trigger and MSD Ignition Control
- Designed to fit low in the block to clear firewall and intake combinations
- O-ring seals can be added to modified blocks to improve oil pressure control
MSD 8558 Specifications
Product Attributes
| Brand | MSD |
| Category | Ignition |
| Color | Red |
| Distributor Cap Included | Yes |
| Distributor Type | Crank Trigger |
| Emission Code | 4 |
| Gear Material | Bronze |
| Grade Type | Performance |
| Ignition Box Required | Yes |
| Ignition Coil Included | No |
| Ignition Rotor Included | Yes |
| Part Type | Distributor |
| Product Type | Distributor |
| Sub Category | Distributor and Magneto |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 1 Year Warranty |
Additional Information
| Original Supplier | US |
| Warranty Special | Manufacturer's Limited 1 Year Warranty |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8511300040 |
| Harmonized Tariff Code (HTS) | 8511300040 |
| NAFTA Preference Criterion Code | B |
| UPC | 00085132085583 |
MSD 8558 Fits Vehicles
- Pontiac Ventura (1971-1972)
- GMC Sprint (1971-1975)
- GMC Jimmy (1970-1974)
- GMC G35/G3500 Van (1971-1974)
- GMC K35/K3500 Pickup (1968-1974)
- GMC K25/K2500 Suburban (1967-1974)
- GMC K25/K2500 Pickup (1967-1974)
- GMC K15/K1500 Suburban (1968-1974)
- GMC K15/K1500 Pickup (1967-1974)
- GMC G25/G2500 Van (1967-1974)
- GMC G15/G1500 Van (1967-1974)
- GMC C35/C3500 Pickup (1967-1974)
- GMC C25/C2500 Suburban (1967-1974)
- GMC C25/C2500 Pickup (1967-1974)
- GMC C15/C1500 Suburban (1967-1974)
- GMC C15/C1500 Pickup (1967-1974)
- Chevrolet Truck (1955-1960)
- Chevrolet Nova (1969-1974)
- Chevrolet Monte Carlo (1970-1974)
- Chevrolet K20 Suburban (1967-1974)
- Chevrolet K10 Suburban (1967-1974)
- Chevrolet Impala (1959-1974)
- Chevrolet El Camino (1959-1960, 1964-1974)
- Chevrolet Corvette (1955-1972, 1974)
- Chevrolet Caprice (1966-1974)
- Chevrolet Camaro (1967-1974)
- Chevrolet C20 Suburban (1967-1974)
- Chevrolet C10 Suburban (1967-1974)
- Chevrolet Blazer (1969-1974)
- Chevrolet Bel Air (1955-1974)
- Chevrolet Suburban (1961-1966)
- Chevrolet G20 Van (1968-1974)
- Chevrolet Chevelle (1967-1973)
- Chevrolet Two-Ten Series (1955-1957)
- Chevrolet Townsman (1969-1972)
- Chevrolet One-Fifty Series (1955-1957)
- Chevrolet Kingswood (1969-1972)
- Chevrolet K30 Pickup (1968-1974)
- Chevrolet K20 Pickup (1961-1974)
- Chevrolet K10 Pickup (1961-1974)
- Chevrolet G30 Van (1970-1974)
- Chevrolet G10 Van (1968-1974)
- Chevrolet Chevy II (1963-1968)
- Chevrolet C30 Pickup (1961-1974)
- Chevrolet C20 Pickup (1961-1974)
- Chevrolet C10 Pickup (1961-1974)
- Chevrolet Brookwood (1969-1972)
- Chevrolet Biscayne (1958-1972)
