(888) 312-8812 Login SignupWAGNER BD126455E Wagner Brake BD126455E Disc Brake Rotor
Tap to view 2 more
MSRP: $96.76
$5899
Save $37.77
Limited availability at this price!
In Stock
Get as soon as Friday, Oct 16
WAGNER BD126455E Part Description
Manufacturer
Product Description

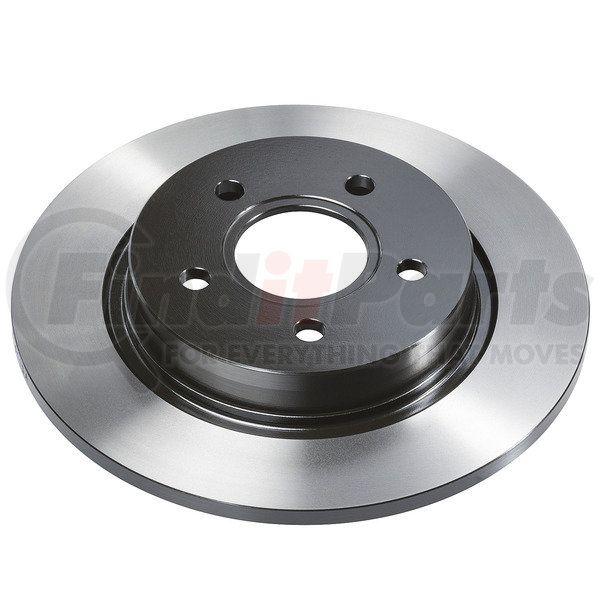

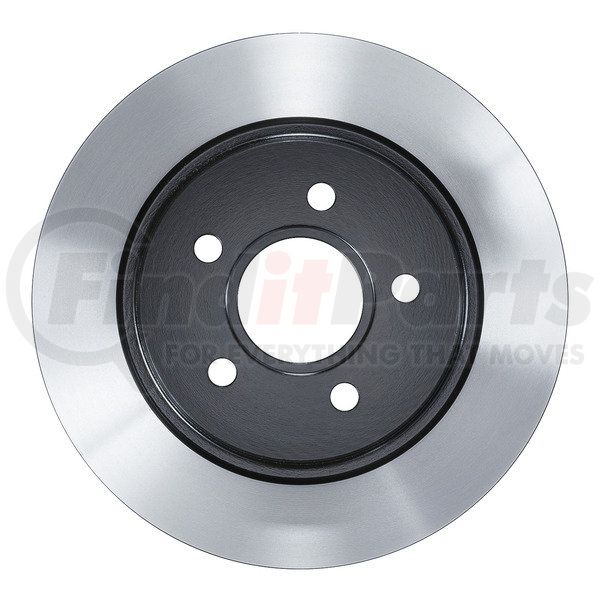

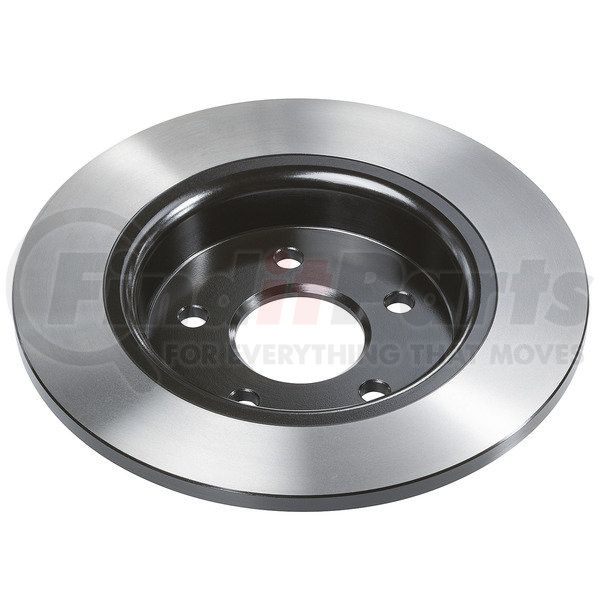

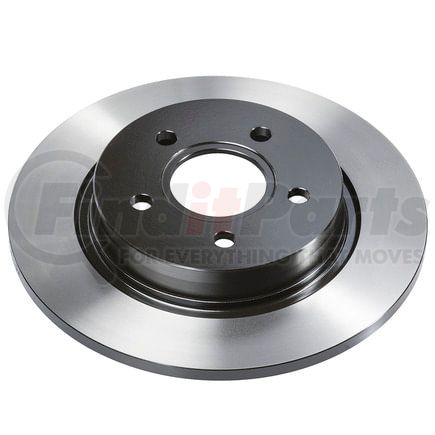

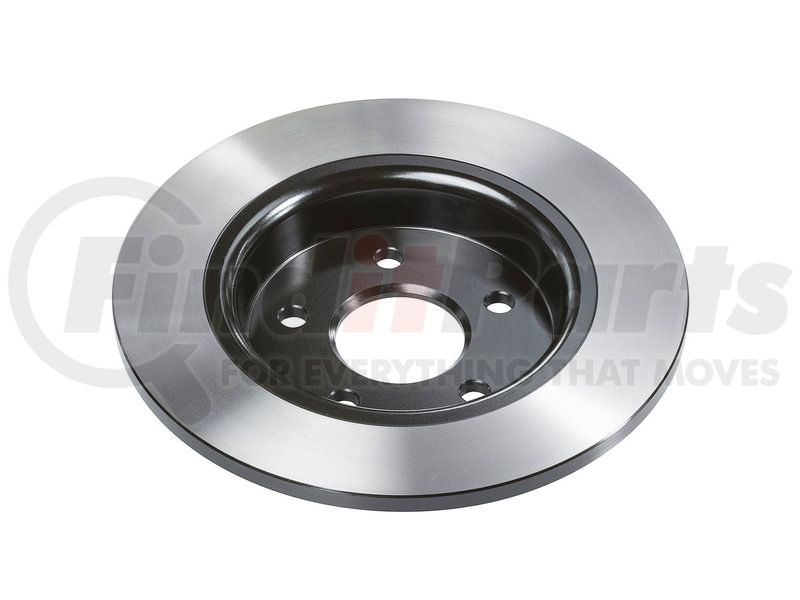

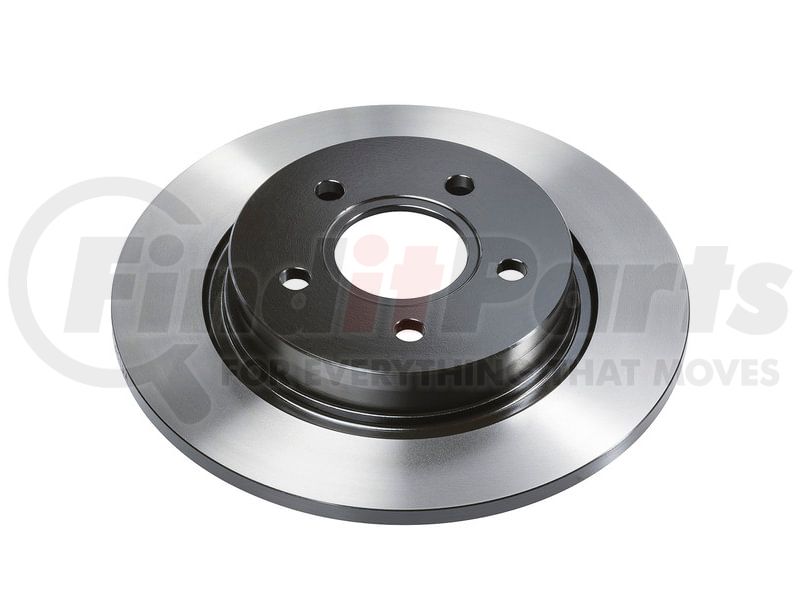

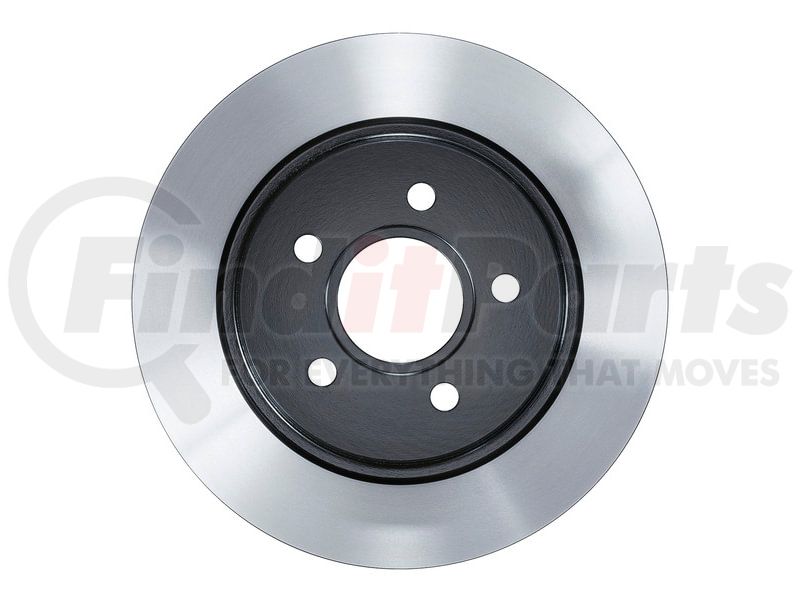

Disc Brake Rotor
Application Summary
2006-2013 Volvo C70 (Rear) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 280mm Diameter Rotor); 2004-2012 Volvo S40 (Rear) (Liter: 2.5, 2.4 & Engine(cc): 2521, 2435 & Cylinder: 5 & Block: L & Bore(in): 3.26, 3.27 & Bore(mm): 83.0 & Stroke(in): 3.67, 3.54 & Stroke(mm): 93.2, 90.0 / Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 280mm Diameter Rotor); 2005-2011 Volvo V50 (Rear) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 280mm Diameter Rotor); 2007-2013 Volvo C30 (Rear) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 280mm Diameter Rotor)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD126455E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 0.430 IN |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 11.014 IN |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Height | 1.609 in |
| Part Description | Disc Brake Rotor |
| Nominal Thickness | 10.9 MM |
| Outside Diameter | 279.7 MM |
| Height | 40.8 MM |
| Stud/Lug Hole Quantity | 5 |
| Overall Height | 40.8 MM |
| Overall Height | 1.609 IN |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.504 IN |
| Center Hole Diameter | 63.6 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 9.0 MM |
| Discard Thickness | 0.354 IN |
| Mounting Bolt Hole Circle Diameter | 4.249 IN |
| Mounting Bolt Hole Circle Diameter | 107.9 MM |
| Mounting Bolt Hole Diameter | 13.8 MM |
| Mounting Bolt Hole Diameter | 0.545 IN |
| Prop 65 Label (Yes/No) | No |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536957478 |
| VMRS Code | 013017001 |
| UNSPSC | 25171715 |
WAGNER BD126455E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A2476, 18A2476A, 18A2476AC |
| ATE | 411158, SP11158 |
| Autospecialty | EBR1066 |
| Bosch | 52011381 |
| BrakeBest Select Drum/Rotor | 980550RGS |
| Carquest Platinum Painted Rotors | YH200921P |
| Carquest Platinum Plus Coated Rotors | YH200921C |
| Carquest Wearever | YH200921 |
| Centric Parts | 120.39039, 121.39039, 125.39029, 12039039, 12139039, 12539029, 125.39039, 125.39039CRY, 320.39039F, 320.39039H |
| DuraGo | BR900552, BR900552-01, BR900552-02 |
| Duralast | 45418 |
| Dynamic Friction Company | 604-27033, 600-27033 |
| FAG MX | BRR410410 |
| NAPA BRAKES | 880550CR, 48880550, 248880550 |
| PowerStop | EBR1066, EBR1066EVC |
| Pro-Series | PS45418, C08678 |
| Promax | 14-34347, 20-34347 |
| RAYBESTOS | 980550 |
| Raybestos Brakes | 980550, 980550FZN, 980550R |
| Volkswagen | 306668020, 30769113, 307691130 |
| Volvo | 307691130, 31499632, 314996320 |
| Winhere | 661489, UR002368 |
| Worldparts Synergy | WS1834347 |
WAGNER BD126455E Fits Vehicles
- Volvo C30 (2007-2013)
- Volvo C70 (2006-2013)
- Volvo S40 (2004-2012)
- Volvo V50 (2005-2011)
