WAGNER BD126445E Part Description
Manufacturer
Product Description

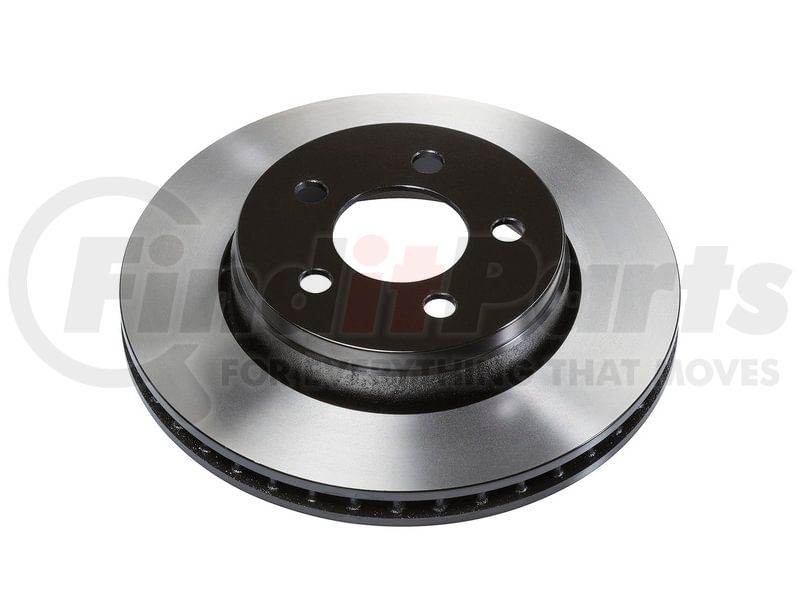

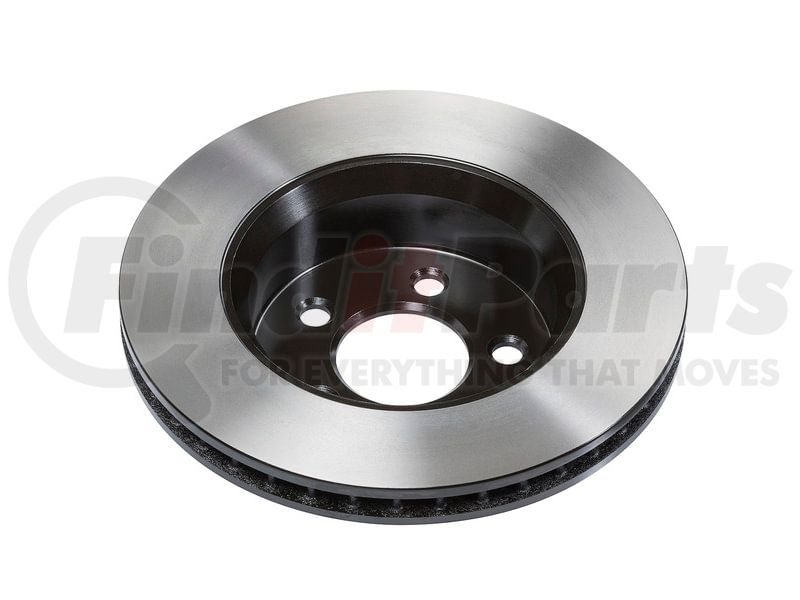

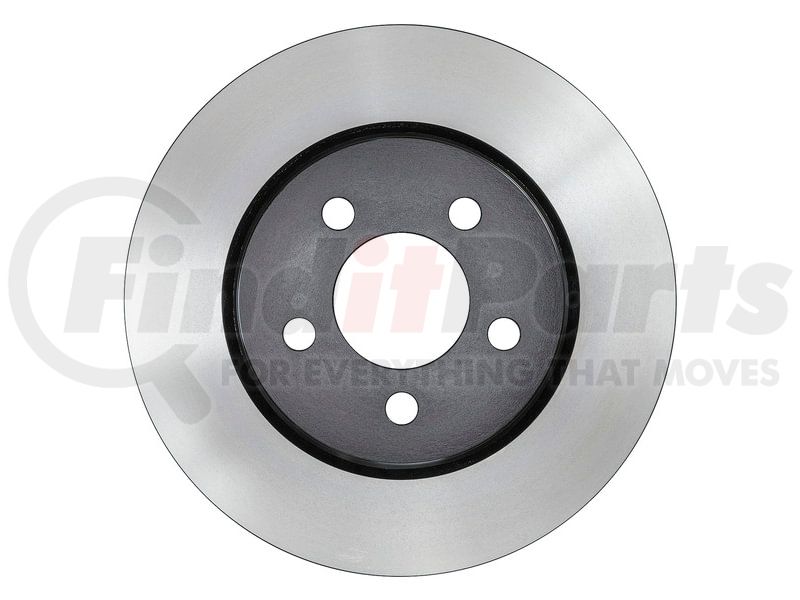

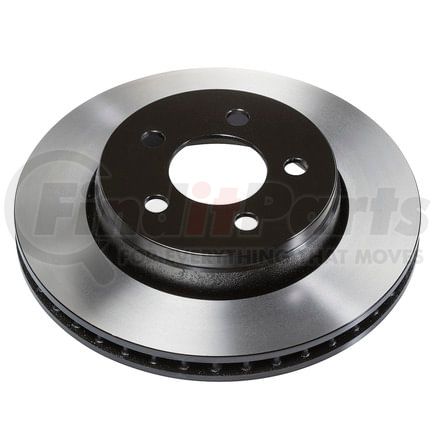

Disc Brake Rotor
Application Summary
2007-2011 Dodge Nitro (Front) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion, Except Heavy Duty Brakes / Note: 5 Stud Wheel, with 302mm Diameter Rotor); 2008-2012 Jeep Liberty (Front) (Qualifier: Except Heavy Duty Brakes, Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 302mm Diameter Rotor)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD126445E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 1.110 IN |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 11.890 IN |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Height | 2.528 in |
| Part Description | Disc Brake Rotor |
| Nominal Thickness | 28.2 MM |
| Stud/Lug Hole Quantity | 5 |
| Outside Diameter | 302.0 MM |
| Overall Height | 2.528 IN |
| Overall Height | 64.2 MM |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536941804 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD126445E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A2469, 18A2469SD, 18A2469A, 18A2469AC |
| ADVICS | P6F206U |
| Autospecialty | AR83071 |
| BREMBO | 09.C004.11 |
| Bosch | 16010265 |
| BrakeBest Select Drum/Rotor | 780540RGS, 780540PRM |
| CENTRIC | 120.63071 |
| Carquest Platinum Plus Coated Rotors | YH145707C |
| Carquest Wearever | YH145707 |
| Centric Parts | 121.63071 |
| Chrysler | 52109938AB |
| DuraGo | BR900328, BR900328-01, BR900328-02 |
| Duralast | 43159 |
| Dynamic Friction Company | 600-42020, 604-42020 |
| NAPA | 48880540, 880540 |
| NAPA BRAKES | 880540CR, RA880540, 48880540, 248880540 |
| PowerStop | AR83071, AR83071EVC |
| Pro-Series | PS43129, C26445 |
| RAYBESTOS | 780540, 780540R |
| Raybestos Brakes | 780540, 780540R, 780540FZN, 780540R2, 780540PER |
| Worldparts Synergy | WS1153042 |
WAGNER BD126445E Fits Vehicles
- Jeep Liberty (2008-2012)
- Dodge Nitro (2007-2011)
