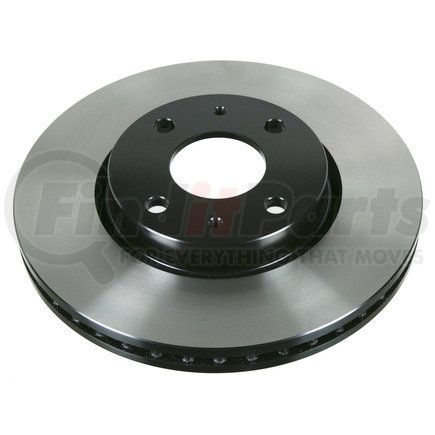

(888) 312-8812 Login SignupWAGNER BD126451E Wagner Brake BD126451E Disc Brake Rotor
Tap to view 2 more
MSRP: $132.45
$5349
Save $78.96
Limited availability at this price!
In Stock
Get as soon as Tuesday, Nov 10
WAGNER BD126451E Part Description
Manufacturer
Product Description
Disc Brake Rotor
Application Summary
2008-2011 Ford Focus (Front) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 4 Stud Wheel; 4 Stud Wheel, with 275mm Diameter Rotor)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD126451E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 0.984 IN |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 10.827 IN |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Height | 1.772 in |
| Part Description | Disc Brake Rotor |
| Nominal Thickness | 25.0 MM |
| Stud/Lug Hole Quantity | 4 |
| Outside Diameter | 275.0 MM |
| Overall Height | 1.772 IN |
| Overall Height | 45.0 MM |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Non-Directional |
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.504 IN |
| Center Hole Diameter | 63.6 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 23.0 MM |
| Discard Thickness | 0.906 IN |
| Mounting Bolt Hole Circle Diameter | 4.250 IN |
| Mounting Bolt Hole Circle Diameter | 108.0 MM |
| Mounting Bolt Hole Diameter | 0.541 IN |
| Mounting Bolt Hole Diameter | 13.7 MM |
| Prop 65 Label (Yes/No) | No |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536941361 |
| VMRS Code | 013017001 |
| UNSPSC | 25171715 |
WAGNER BD126451E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A2608A, 18A2608AC |
| Autospecialty | AR8193 |
| Bosch | 20011443 |
| BrakeBest Select Drum/Rotor | 680677RGS, 680677PRM |
| CENTRIC | 120.61093 |
| Carquest | YH248774 |
| Carquest Platinum Plus Coated Rotors | YH248774C |
| Centric Parts | 120.61093, 121.61093, 12061093, 12161093, 120.61093CRY, 320.61093F |
| DuraGo | BR900580, BR900580-01, BR900580-02 |
| Duralast | 42257DL, 42257DG |
| Dynamic Friction Company | 600-54061, 604-54061 |
| Ford | 8S4Z1125A, 9S4Z1125A, AS4Z1125A |
| NAPA BRAKES | 880677CR, 48880677, 248880677 |
| PowerStop | AR8193, AR8193EVC |
| Pro-Series | PS42257, C26451 |
| Promax | 14-54161, 20-54161 |
| RAYBESTOS | 680677R |
| Raybestos Brakes | 680677, 680677R, 680677FZN, 680677R2 |
| Worldparts Synergy | WS1154161 |
WAGNER BD126451E Fits Vehicles
- Ford Focus (2008-2011)
