WAGNER BD180654E Part Description
Manufacturer
Product Description

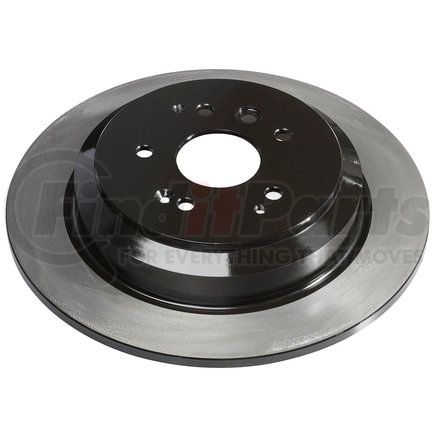

Disc Brake Rotor
Application Summary
2014-2016 Acura MDX (Rear) (Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD180654E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 0.437 IN |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 12.992 IN |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Height | 2.334 in |
| Part Description | Disc Brake Rotor |
| Outside Diameter | 330.0 MM |
| Stud/Lug Hole Quantity | 5 |
| Overall Height | 2.334 IN |
| Overall Height | 59.3 MM |
| Nominal Thickness | 11.0 MM |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536948049 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD180654E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A81064, 18A81064SD, 18A81064A, 18A81064AC |
| Acura | 42510TZ5A00, 42510TZ5A03 |
| Autospecialty | JBR1587 |
| Bosch | 26011622 |
| BrakeBest Select Drum/Rotor | 912062RGS |
| Carquest Platinum Painted Rotors | YH503883P |
| Carquest Wearever | YH503883 |
| DuraGo | BR901320, BR901320-01, BR901320-02 |
| Duralast | 74018DL |
| Dynamic Friction Company | 604-58028, 600-58028 |
| Honda | 42510TZ5A00 |
| NAPA BRAKES | 881064CR, 48881064, 248881064 |
| PowerStop | JBR1587, JBR1587EVC |
| Pro-Series | C08593, PS45697 |
| RAYBESTOS | 981064 |
| Raybestos Brakes | 981064, 981064R, 981064FZN, 981064R2, 981064PER |
| Winhere | 6612062 |
| Worldparts Synergy | WS1231662 |
WAGNER BD180654E Fits Vehicles
- Acura MDX (2014-2016)
