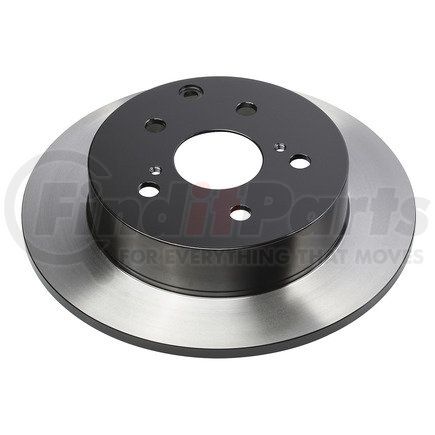

(888) 312-8812 Login SignupWAGNER BD126559E Wagner Brake BD126559E Disc Brake Rotor
Tap to view 2 more
MSRP: $74.60
$4599
Save $28.61
Limited availability at this price!
In Stock
Get it by Thursday, Jul 2
WAGNER BD126559E Part Description
Manufacturer
Product Description
Disc Brake Rotor
Application Summary
2009-2010 Pontiac Vibe (Rear) (Drive: AWD / Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 281mm Diameter Rotor); 2009-2013 Toyota Matrix (Rear) (Liter: 2.4 & Engine(cc): 2362 & Cylinder: 4 & Block: L & Bore(in): 3.48 & Bore(mm): 88.5 & Stroke(in): 3.78 & Stroke(mm): 96.0 & Drive: AWD / Qualifier: Black E-Coat on non-braking surface to prevent rust and corrosion / Note: 5 Stud Wheel, with 281mm Diameter Rotor)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD126559E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 0.396 IN |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 11.061 IN |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Height | 2.161 in |
| Part Description | Disc Brake Rotor |
| Stud/Lug Hole Quantity | 5 |
| Outside Diameter | 280.9 MM |
| Overall Height | 2.161 IN |
| Overall Height | 54.9 MM |
| Nominal Thickness | 10.0 MM |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536956785 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD126559E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A2636A, 18A2636AC |
| Aimco | 90075400 |
| Autospecialty | JBR1363 |
| Bosch | 50011480 |
| BrakeBest Select Drum/Rotor | 580705RGS |
| Carquest Platinum Painted Rotors | YH275064P |
| Carquest Wearever | YH275064 |
| Centric Parts | 120.44167, 121.44167, 12044167, 12144167, 320.44167F |
| DuraGo | BR900754, BR900754-01 |
| Duralast | 41235 |
| Dynamic Friction Company | 604-76084, 600-76084 |
| General Motors | 19184276 |
| NAPA BRAKES | 880705CR, 48880705, 248880705 |
| PowerStop | JBR1363, JBR1363EVC |
| Pro-Series | PS41235, C09149 |
| RAYBESTOS | 580705R |
| Raybestos Brakes | 580705R, 580705FZN |
| Toyota | 4243102220 |
| Worldparts Synergy | WS1255160 |
WAGNER BD126559E Fits Vehicles
- Pontiac Vibe (2009-2010)
- Toyota Matrix (2009-2013)
WAGNER BD126559E Customer Reviews
No reviews yet
Be the first to review this product!
WAGNER BD126559E Manufacturer Information
When it comes to high-quality lighting and braking products for vehicle safety systems, one name stands out—Wagner®. Since 1891, this brand has been developing highly efficient critical components for vehicle safety systems across the globe. Wagner® is renowned for its cutting-edge braking component and technologies for passenger cars and medium-duty and commercial applications. This brand is also at the forefront of lighting products manufacturing since the introduction of the sealed-beam headlamp. Wagner brake parts and lighting products set high industry standards, thanks to its over 125 years of manufacturing experience and engineering expertise and its commitment to developing products that deliver superior performance.
WAGNER BD126559E Questions & Answers
No questions yet
Be the first to ask a question about this product!
