HALDEX KN28510 Part Description
Manufacturer
Product Description

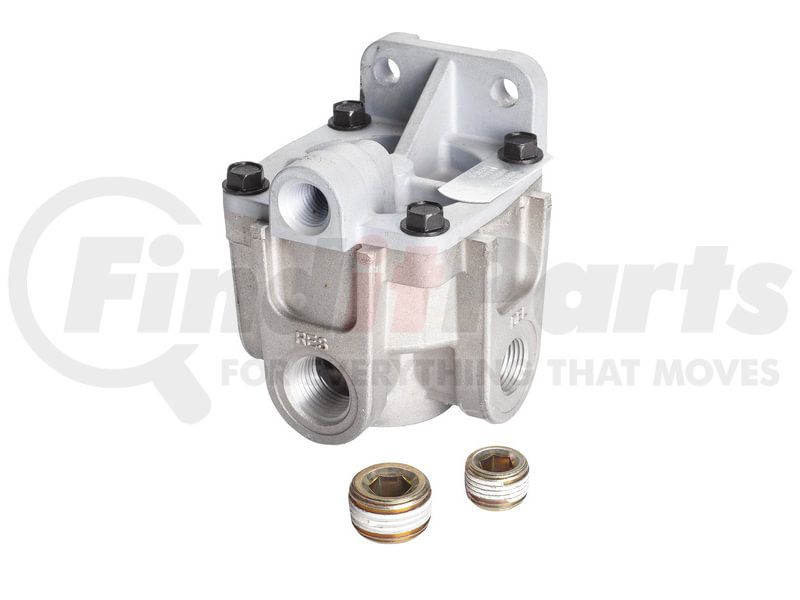

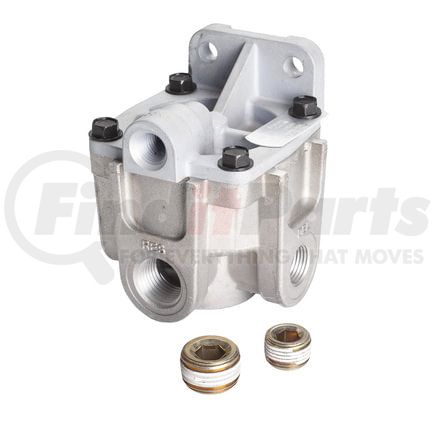

RG2 Relay Valve
Features & Benefits
- Designed as a fast relay that can be used to apply and release service brakes on tractor or trailer
- Compact in size for easier installation
- Product’s cover may be rotated without affecting the warranty or performance
- Weighs approximately 1.5 lbs. and has two mounting holes
Haldex Air Brake Relay Valve
Get improved air brake system performance with the Haldex air brake relay valve. Manufactured by a brand with more than 100 years of engineering expertise, this 2-port, RG2 ABS relay valve is designed to provide supreme levels of quality, performance, and reliability.
HALDEX KN28510 Specifications
Product Attributes
| Control Port Diameter | 1/4 in. |
| Delivery Port Diameter | 2 @ 3/8 in. |
| Freight Class | 70 |
| Height | 0.63 in. |
| Length | 3.5 in. |
| Mounting Hole Diameter | 2 @ 0.34 in. on 1.5 in. Centers |
| Opening Pressure | 5.6 ± 1.0 PSI |
| Plugs Included | 1 @ .5 in., 1 @ .375 in. |
| Port Position | 90° |
| Supply Port Diameter | 2 @ 1/2 in. |
| Width | 3.50 in. |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8481200070 |
| Harmonized Tariff Code (HTS) | 8481200070 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | 36 MO, 350,000 MI=Haldex Air Brake Valves(1), Automatic Drain Valves (410-10XXX Series)(1). 12 MO, 100,000 MI= Automatic Drain Valves (N20878/ N20879 Series), Height Control Valve, Scale-O-Matic and AC Boxes. See L20221W.pdf for warranty details |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653010779 |
| VMRS Code | 013010009 |
HALDEX KN28510 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | AE78882, 110197N, A78889, 110155, 9732980160, EM-36120, P-67049, PS12014301, ZZKN28510X, 4194307081, 14035, 021-02261, 30068, U55 KN28510X, S-6086, 712800020, PPA-046, 3081425, WAKN28510, 67049, 932028, RB-28510, AV28510, 401202 |
| Euclid | AE78882, AE78889, AE86313, AE86318, E-MDKN28510X, E-SL110197X |
| Midland | 110197N, 110197RX, 110197X, A78889X, AE78889, AE86313, KN28510, KN28510N, KN28510RX, KN28510X, KSV4040846, N30108AC, N30108AK, N30108BG, N30108BJ, N30108BL, N30108BM, N30108BP, PAN30108BK, VN30108AC, VN30108BL |
| Prior | A78889 |
| Sealco | 110155, 110197, 110198, 110199, 110228, 110275, 9125 |
| Meritor | 9732980160, RKN28510, VN30108BL |
| PAI | EM-36120, LRV-3612 |
| Dana Commercial Vehicle Service Parts | P-67049 |
| Dorsey Trailer | PS12014301 |
| Navistar | ZZKN28510X |
| Freightliner | 4194307081 |
| Tectran | 14035 |
| Timpte | 021-02261 |
| Di-Pro Inc. | 30068 |
| Ryder | U55 KN28510X |
| S&S Truck Parts | S-6086 |
| Trail King Industries | 712800020 |
| Transcraft | PPA-046 |
| Volvo GM Heavy Truck | 3081425, 72201-0013, 72201-0035 |
| World American | WAKN28510 |
| NAPA | 67049, KN28510N |
| Wagner | 932028, A78882, A78889, A86319, AE78882-001, AE78889, AE78889-001, AE86318, AE86319 |
| RANGER BRAKE | RB-28510 |
| OTR | AV28510 |
| Tramec Sloan | 401202 |
| EUCLID | AE78882, AE78889, AE86313, AE86318, E-MDKN28510X, E-SL110197X |
| MIDLAND | 110197N, 110197RX, 110197X, A78889X, AE78889, AE86313, KN28510, KN28510N, KN28510RX, KN28510X, KSV4040846, N30108AC, N30108AK, N30108BG, N30108BJ, N30108BL, N30108BM, N30108BP, PAN30108BK, VN30108AC, VN30108BL |
| PRIOR | A78889 |
| SEALCO | 110155, 110197, 110198, 110199, 110228, 110275, 9125 |
| MERITOR | 9732980160, RKN28510, VN30108BL |
| DANA | P-67049 |
| NAVISTAR | ZZKN28510X |
| FREIGHTLINER | 4194307081 |
| TIMPTE | 021-02261 |
| DI-PRO | 30068 |
| RYDER FLEET PROD. | U55 KN28510X |
| TRANSCRAFT | PPA-046 |
| WORLD AMERICAN | WAKN28510 |
| WAGNER | 932028, A78882, A78889, A86319, AE78882-001, AE78889, AE78889-001, AE86318, AE86319 |
HALDEX KN28510 Cross References
We have 18 alternatives for the KN28510 by HALDEX:
HALDEX KN28510 Manufacturer Information
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
