A completely serviceable valve designed with customer in mind
Made with Engineering Grade Composite (EGC) - one-piece housing
Built to last longer than the competing brand
A perfect replacement valve at a budget-friendly price

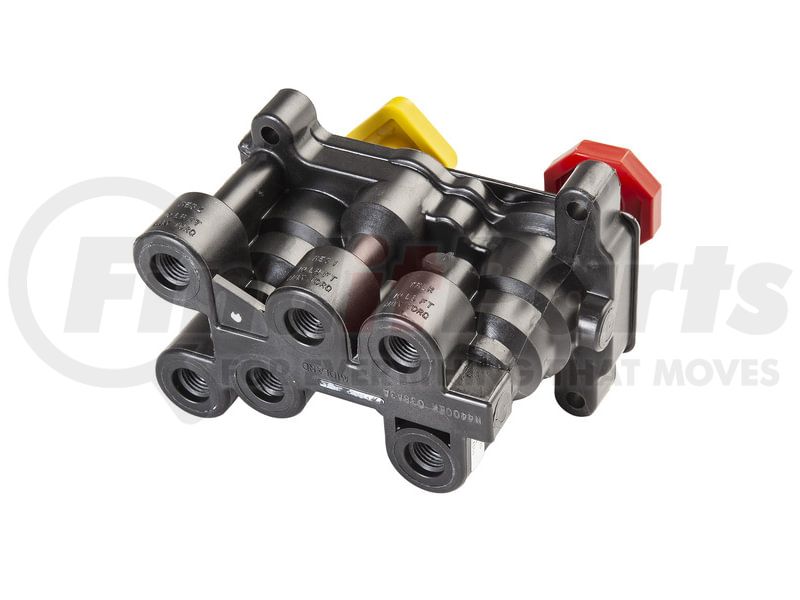

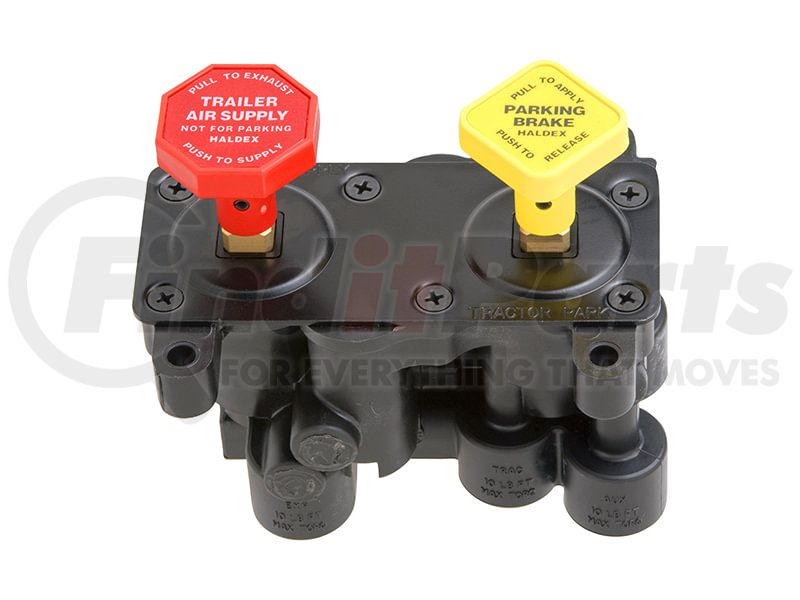

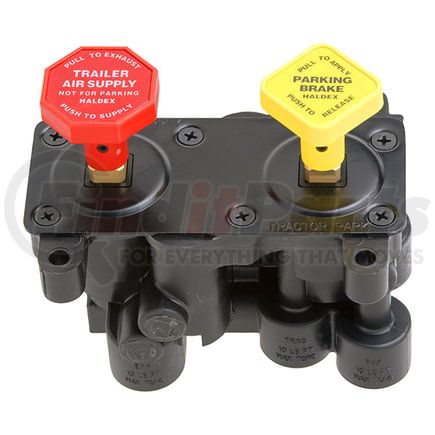

Haldex Hand Operated Valve
The Haldex hand operated valve enables the user to manually reduce incoming pressure to the desired output pressure. Manufactured by a brand with over 100 years of engineering expertise, this hand control valve delivers superior performance, reliability, and efficiency.
Product Attributes
Auxiliary Supply Port
.25 in.
Delivery Port Trailer
.25 in.
Exhaust Port
0.25
Freight Class
70
Mounting (4 holes)
Horizontal - .25 hole in body
Non-Override Pressure
25 ± 5 PSI
Reservoir Port
2 @ .25
Spools
2
Tractor Delivery Port
.25 in.
Tractor Valve
20 - 35 PSI
Trailer Valve
20 - 45 PSI
Additional Information
Country of Origin (Primary)
MX
Harmonized Tariff Code (Schedule B)
8481200070
Harmonized Tariff Code (HTS)
8481200070
Remanufactured Part
N
Warranty Distance
100000
Warranty Distance UOM
MI
Warranty Special
36 MO, 350,000 MI=Haldex Air Brake Valves(1), Automatic Drain Valves (410-10XXX Series)(1). 12 MO, 100,000 MI= Automatic Drain Valves (N20878/ N20879 Series), Height Control Valve, Scale-O-Matic and AC Boxes. See L20221W.pdf for warranty details
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
HALDEX KN20615 Cross Reference
We have 10 alternatives for the KN20615 by HALDEX:
