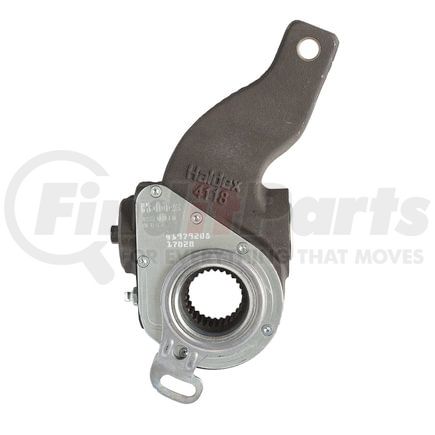

(888) 312-8812 Login SignupHALDEX 30010191 Air Brake Automatic Slack Adjuster - 6-1/2" Arm, 50mm Offset, 1/2" Arm Hole Diameter
MSRP: $366.68
$25699
Save $109.69
Limited availability at this price!
In Stock
Get it by Monday, Dec 29
HALDEX 30010191 Part Description
Manufacturer
Product Description
Auto Brake Adjuster (ABA), Transit/Severe Duty, Arm Length 6-1/2" Offset 50mm
Application Summary
TRANSIT AA1. Opposite Side Brake Adjuster: 30010192
Features & Benefits
- Covers more applications than competing adjusters in the market
- Compatible with clevises from major OE and aftermarket brands
- Easily accessible hex nut for easy adjustment and maintenance
- Specially-crafted wormshaft provides added resistance against fatigue
- Heavy duty gaskets and O-rings seal out moisture and contaminants
- Fully-sealed design protects linkages against the elements for added durability
- Helps prevent uneven tire and brake wear for added savings on maintenance and operating expenses
- Heat-treated steel alloy internal gears provide increased strength and wear resistance
Haldex Transit ABA Service Kit
Improve your ride’s stopping performance with the Haldex transit ABA service kit. This helps improve handling in various driving conditions and is heat-treated for added strength and corrosion resistance.
HALDEX 30010191 Specifications
Product Attributes
| Arm Hole Diameter | 1/2 in. |
| Arm Length | 6-1/2 in. |
| Body Angle | 22.5 DD |
| Freight Class | 70 |
| Grease Fitting Location | 180 DD |
| Grease Fitting Type | Straight |
| Location | Rear |
| Offset | 50 mm |
| Pin Diameter | 1/2 in. |
| Spline Diameter | 1-1/2 in. |
| Spline Quantity | 28 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708305090 |
| Harmonized Tariff Code (HTS) | 8708305090 |
| Remanufactured Part | N |
| Warranty Distance | 100000 |
| Warranty Distance UOM | MI |
| Warranty Special | 72 MO, 1 MIL MI=Haldex ABA/SABA (409 Part Number Prefix)(1), 36 MO, Unlimited MI=Haldex ABA (NL/429 Part Number Prefix)(1). 24 MO, 200K MI=Haldex ABA(8). 24 MO, 100K MI=Haldex ABA/S-ABA(3) & Non-Haldex ABA. 12 MO, 100K MI=Haldex ABA(9). See L20221W.pdf |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00767653314877 |
| VMRS Code | 013002035 |
HALDEX 30010191 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | 300-10191, A13275G1281, A1-3275-G-1281, U55 30010191 |
| Haldex | 300-10191, 419-79208 |
| Meritor | A13275G1281 |
| Rockwell International | A1-3275-G-1281 |
| Ryder | U55 30010191 |
| MERITOR | A13275G1281 |
| ROCKWELL | A1-3275-G-1281 |
| RYDER FLEET PROD. | U55 30010191 |
HALDEX 30010191 Cross References
We have 3 alternatives for the 30010191 by HALDEX:
HALDEX 30010191 Customer Reviews
No reviews yet
Be the first to review this product!
HALDEX 30010191 Manufacturer Information
Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.
