CURT Manufacturing 45431 - Industrial Duty Forged Ball Mount (3in. Shank; 21;000 lbs.; 6in. Drop; 10in. Lon
- Part Number
- 45431
- Manufacturer
- CURT MANUFACTURING
- Description
-
Industrial Duty Forged Ball Mount (3in. Shank; 21;000 lbs.; 6in. Drop; 10in. Lon
details
$22599
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CURT MANUFACTURING part description
Product Description
Industrial Duty Forged Ball Mount (3in. Shank; 21;000 lbs.; 6in. Drop; 10in. Lon
Features & Benefits

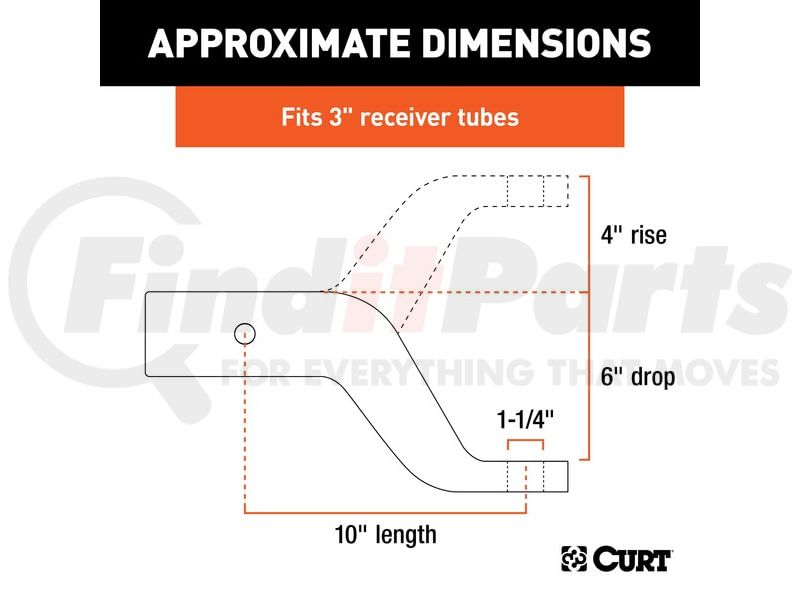

- Fits trailer hitches with a 3" x 3" receiver tube opening
- Tested and rated to 21,000 lbs. GTW and 2,800 lbs. TW
- Constructed from solid, forged steel for superior strength
- Equipped with a 1-1/4" hole to accept a trailer ball shank
- 4" rise and 6" drop for use with larger, lifted trucks
- Limited lifetime warranty (one-year finish, one-year parts)
- Fits Trailer Hitches w/3x3 in. Receiver Tube Opening
- Tested and Rated To 21000 lbs. GTW
- Constructed From Solid Forged Steel For Superior Strength
- Equipped w/1.25 in. Hole To Accept Trailer Ball Shank
- Protected By A Highly Durable Carbide Powder Coat Finish
Fits trailer hitches with a 3" x 3" receiver tube opening
Product Attributes
| Drop | 6 IN |
| Finish | Carbide Black Powder Coat |
| Gross Trailer Weight | 21000 lbs. |
| Overall Length | 10.500 in. |
| Receiver Tube Size | 3 IN |
| Rise | 4 IN |
| Style | One Piece |
| WARNING CA Proposition 65 | No |
| WC Tongue Weight | 2800 |
| Pallet Case Per - XA | 108 |
| Pallet Case Per Layer - XA | 18 |
| Pallet Cases Per - XA | 108 |
| Pallet Cases Per Layer - XA | 18 |
| Pallet Layer of Cases - XA | 6 |
| Pallet Qty - XA | 0.000 |
| Pallet Total Height Inches - XA | 26.000 |
| Pallet Total Weight Per - XA | 2747.200 |
| Parcel Allowed - Xa | Yes |
| Product Weight - Xa | 0.000 |
| Prop 65 Label Text - XA | Blanks |
| Prop 65 Material - XA | Unknown |
| Prop 65 Reason - XA | Unknown |
| Prop 65 Warning Label Type - XA | Unknown |
| Prop 65 Warning Y/N - XA | NO |
| Rate Class - Xa | 60.0 |
| Retail Height - Xa | 3.000 |
| Retail Length - Xa | 16.000 |
| Retail Width - Xa | 5.000 |
| Sales Family Code - Xa | ACCES |
| Sales Family Description - Xa | ACCESSORIES |
| Sales Group Description - Xa | BALL MOUNT |
| Shipping Weight - Xa | 25.020 |
| Side Application Type Description - Xa | Blank |
| Tariff 301 - Xa | Yes |
| Title | Industrial Duty Forged Ball Mount (3" Shank, 21,000 lbs., 6" Drop, 10" Long) |
| Tongue Weight (tw) | 2,800 LB |
| Truckload Cases Qty - XA | 0 |
| Truckload Pallets Qty - XA | 0 |
| Truckload Units Qty - XA | 0 |
| Truckload Volume Cubic Feet - XA | 0.00000 |
| Truckload Weight - XA | 0 |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Box Height In Inches - Xa | 2 |
| Box Length In Inches - Xa | 7 |
| Box Width In Inches - Xa | 4 |
| Class Id | 0 |
| Container Cases Qty - XA | 1512 |
| Container Load Type - XA | PALLETS |
| Container Pallet Qty - XA | 14 |
| Container Type - XA | 20GP |
| Container Unit Qty - XA | 1512 |
| Container Volume Cubic Feet - XA | 0.00000 |
| Container Volume Cubic Meter - XA | 0.00000 |
| Container Weight KG - XA | 0 |
| Container Weight Lbs - XA | 38460 |
| Finish - Xa | CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight (gtw) | 21,000 LB |
| Hole Size | 1.25 |
| Item Class - Xa | OBS |
| Item Height - Xa | 0.000 |
| Item Length - Xa | 0.000 |
| Item Width - Xa | 0.000 |
| Master Case Height Inches - XA | 3.500 |
| Master Case Inner Pack Qty - XA | 0 |
| Master Case ITF14 | 0 |
| Master Case ITF14 - XA | 0 |
| Master Case Length Inches - XA | 16.375 |
| Master Case Qty - XA | 1 |
| Master Case Volume Cubic Feet - XA | 0.00000 |
| Master Case Weight Lbs - XA | 25.020 |
| Master Case Width Inches - XA | 5.750 |
| Material - Xa | Blank |
| Mount Type Description - Xa | Blank |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708998180 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| NAFTA Preference Criterion Code | B |
| Warranty Special | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Warranty Special UOM | TX |
| UPC | 00612314454310 |
