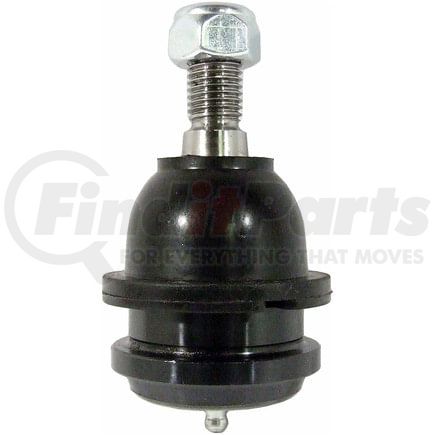

(888) 312-8812 Login SignupDELPHI TC1669 Ball Joint
Tap to view 2 more
MSRP: $34.08
$2749
Save $6.59
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 23
DELPHI TC1669 Part Description
DELPHI TC1669 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040 |
| Maximum Outside Diameter | 2.323 IN |
| Maximum Outside Diameter | 59.00 MM |
| Color | Gray |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | No |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 59 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 4.449 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greaseable | Yes |
| Stud Thread Length | 1.181 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.125 IN |
| Stud Tapered End 2 Diameter | 0.719 IN |
| Stud Tapered End 2 Diameter | 18.25 MM |
| Stud Tapered End 1 Diameter | 0.846 IN |
| Stud Tapered End 1 Diameter | 21.5 MM |
| Stud Thread Pitch | 2 MM |
| Length | 113.00 MM |
| Length | 4.450 IN |
| Stud Thread Diameter | 0.63 IN |
| Height | 113.00 MM |
| Stud Thread Length | 30 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604276761 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1669 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | K8661, K8749 |
| Mevotech | MK8749 |
| MAS Industries | B8661 |
| N/A | F4ZZ3050B, F4ZZ 3050-A, GK8749, JBJ1174, BJ86335 |
DELPHI TC1669 Fits Vehicles
- Ford Mustang (1994-2004)
