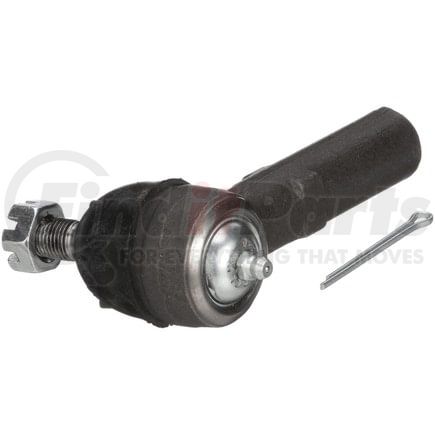

Delphi TA2419 - Tie Rod End
$3699
MSRP: $49.54
Save: $12.55
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Color | Gray |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Dust Boot Included | Yes |
| Width | 39.5 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.472 IN |
| End 2 Thread Diameter | 12.00 MM |
| Height | 83.00 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Tube Diameter | 0.866 IN |
| Tube Diameter | 22.00 MM |
| Adjustable | No |
| Greaseable | Yes |
| Weight | 0.97 lb |
| Cone Outside Diameter | 15.50 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.25 MM |
| Length - Stud Center to End | 3.937 IN |
| Length - Stud Center to End | 100.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 15.50 MM |
| Stud Length | 15.50 MM |
| Grade | Premium |
| Shank Length | 0.610 IN |
| Stud Length | 0.610 IN |
| Cone Outside Diameter | 0.610 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604275511 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
Part Interchanges
- Beck/Arnley 101-3620
- Beck/Arnley 101-4534
- MOOG Chassis Products ES2333
- MOOG Chassis Products ES2814RL
- Mevotech MES2333
- Mevotech MES2814RL
- Datsun/Nissan 48520-2B003
- Datsun/Nissan 48520-2B025
- Datsun/Nissan 48520-35F25
- Datsun/Nissan 48520-4B000
- Datsun/Nissan 48520-4Z025
- Datsun/Nissan 48520-50A26
- Datsun/Nissan 4852053M25
- Datsun/Nissan 48520Q5200
- Datsun/Nissan 48520Q5601
- MAS Industries T2814
- MAS Industries T2814XL
- TRW ES2814
- TRW JTE265
- GES2814RL
- JTE266
Fits Vehicles
- Nissan Multi (1986-1988)
- Nissan Sentra (1986-2006)
- Nissan Pulsar NX (1987-1990)
- Nissan Altima (1996-2001)
- Nissan 240SX (1989-1994)
- Nissan 200SX (1995-1998)
