National Seals 710902 - National 710902 Transfer Case Output Shaft Seal
- Part Number
- 710902
- Manufacturer
- NATIONAL SEALS
- Description
-

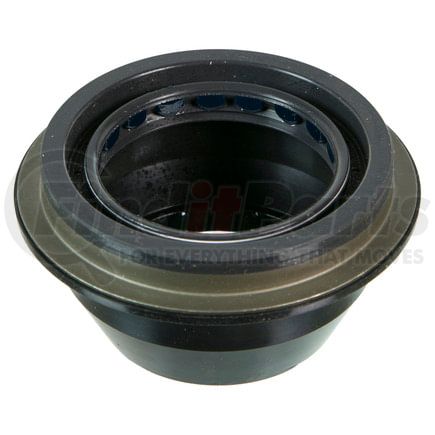

National 710902 Transfer Case Output Shaft Seal
details
$2699
MSRP: $33.64
Save: $6.65
In stock
limited availability at this price!
. Learn more
NATIONAL SEALS part description
Product Description
Transfer Case Output Shaft Seal
Application Summary
2011-2012 Ram 2500 (Rear) (Drive: 4WD / Qualifier: with New Process 271 Transfer Case, 2 Speed, with New Process 273 Transfer Case); 2011-2012 Ram 3500 (Rear) (Drive: 4WD / Qualifier: with New Process 271 Transfer Case, 2 Speed); 2011-2012 Ram 4500 (Rear) (Drive: 4 X 4 / Qualifier: with New Process 271 Transfer Case, 2 Speed); 2011-2012 Ram 5500 (Rear) (Drive: 4 X 4 / Qualifier: with New Process 273 Transfer Case, 2 Speed); 2008-2010 Sterling Truck Bullet 45 (Rear) (Drive: 4 X 4 / Qualifier: with New Process 273 Transfer Case, 2 Speed); 2008-2010 Sterling Truck Bullet 55 (Rear) (Drive: 4 X 4 / Qualifier: with New Process 273 Transfer Case, 2 Speed, with New Process 271 Transfer Case); 2007 Dodge Ram 1500 (Rear) (Drive: 4WD / Qualifier: with New Process 273 Transfer Case, 2 Speed); 2003-2010 Dodge Ram 2500 (Rear) (Drive: 4WD / Qualifier: with New Process 271 Transfer Case, 2 Speed); 2003-2010 Dodge Ram 3500 (Rear) (Drive: 4WD / Qualifier: with New Process 273 Transfer Case, 2 Speed, with New Process 271 Transfer Case); 2008-2010 Dodge Ram 4500 (Rear) (Drive: 4 X 4 / Qualifier: with New Process 273 Transfer Case, 2 Speed, with New Process 271 Transfer Case); 2008-2010 Dodge Ram 5500 (Rear) (Drive: 4 X 4 / Qualifier: with New Process 273 Transfer Case, 2 Speed)
Features & Benefits
- Design type: spring loaded; multi-lip
- Temperature range: -40°F to 400°F / -40°C to 204°C
- Temperature range: -40degF to 400degF / -40degC to 204degC
- Excellent high temperature capabilities
- Compatible with wide range of fluids
- Delivers quality and reliable performance for every type of repair
Product Attributes
| Inside Diameter | 2.300 IN |
| Inside Diameter | 58.420 MM |
| Outside Diameter | 3.330 IN |
| Outside Diameter | 84.579 MM |
| Width | 0.425 in |
| Width | 10.795 MM |
| Material | Fluoro-Elastomer |
| Helix Type | Counter-Clockwise-Spiral Lip Design |
| Part Description | Oil Seal |
| Sealing Material | Fluoro-Elastomer |
| Series | 710900 |
| Thickness | 0.425 IN |
| Thickness | 10.795 MM |
| Type | 79 |
| Unit of Dimension | Inch |
| Flanged Outside Diameter | 3.858 in |
| Flanged Outside Diameter | 98.000 mm |
| Housing Bore | 3.322 in |
| Housing Bore | 84.379 MM |
| Overall Width with Side Lip | 50.000 MM |
| Overall Width with Side Lip | 1.969 in |
| Shaft Diameter | 2.300 IN |
| Shaft Diameter | 58.420 MM |
| Seal Type | Seal |
| Shaft Diameter | 2.300 IN |
| Housing Bore | 3.322 IN |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | TW |
| Harmonized Tariff Code (Schedule B) | 4016931020 |
| Harmonized Tariff Code (HTS) | 4016931020 |
| Canadian Harmonizing Tariff Code | 4016930000 |
| UPC | 00019826208897 |
Part Interchanges
Fits Vehicles
- Sterling Truck Bullet 45 (2008-2010)
- Sterling Truck Bullet 55 (2008-2010)
- Ram 5500 (2011-2012)
- Ram 4500 (2011-2012)
- Ram 3500 (2011-2012)
- Ram 2500 (2011-2012)
- Dodge Ram 5500 (2008-2010)
- Dodge Ram 4500 (2008-2010)
- Dodge Ram 1500 (2007)
- Dodge Ram 3500 (2003-2010)
- Dodge Ram 2500 (2003-2010)
