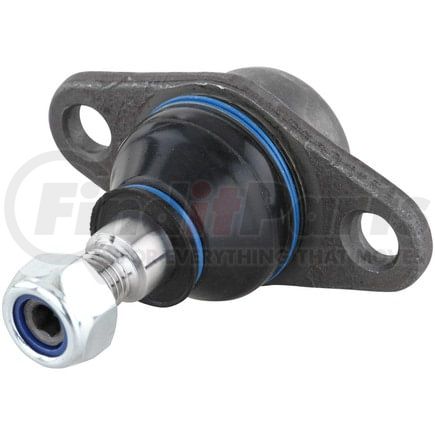

(888) 312-8812 Login SignupDELPHI TC1155 Ball Joint
Tap to view 23 more
MSRP: $29.54
$2449
Save $5.05
Limited availability at this price!
In Stock
Get it by Thursday, Jan 15
DELPHI TC1155 Part Description
DELPHI TC1155 Specifications
Product Attributes
| Position(s) | Front Lower Outer |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 3.071 IN |
| Maximum Outside Diameter | 78.00 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 78 MM |
| Type | Premium |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.150 IN |
| Mounting Bolt Length | 29.20 MM |
| Washers Included | No |
| Height | 1.772 IN |
| Height | 45.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.709 IN |
| Stud Thread Length | 18 MM |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 68.00 MM |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mounting Bolt Shank Diameter | 10.50 MM |
| Mounting Bolt Head Diameter | 20.80 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Length | 20.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.591 IN |
| Stud Tapered End 2 Diameter | 15 MM |
| Stud Tapered End 1 Diameter | 0.677 IN |
| Stud Tapered End 1 Diameter | 17.2 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 90.00 MM |
| Length | 3.540 IN |
| Mounting Bolt Shank Diameter | 0.410 IN |
| Mounting Bolt Head Diameter | 0.820 IN |
| Mounting Bolt Thread Length | 0.790 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604251034 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1155 Cross References
| Brand | Part Number |
|---|---|
| BMW | 3112 6756 309, 3112 6783 443 |
| Beck/Arnley | 101-5670 |
| CORTECO | 49399584 |
| DORMAN | BJ29015, BJ29015XL, 535-587 |
| Deeza | MN-F205 |
| Import Direct | BJ06048, BJ08004, BJ09001 |
| MAS Industries | BJ29013, BJ29014, BJ29015 |
| MEYLE | 3160100007 |
| MOOG Chassis Products | K500006 |
| Mcquay-Norris | FA2286 |
| Mevotech | MS10506 |
| N/A | 32126756309, GS10506 |
| Raybestos Chassis | 505-1356 |
| TRW | JBJ745, JBJ1074 |
| VAICO | V20-7177 |
DELPHI TC1155 Fits Vehicles
- Mini Cooper (2002-2008)
