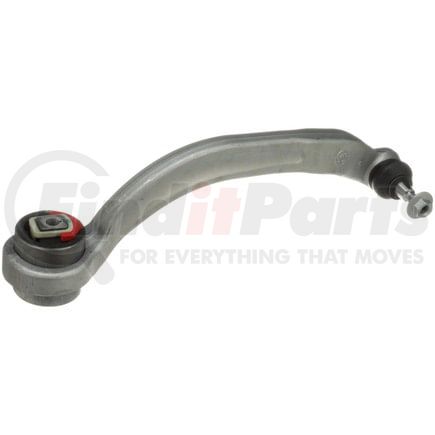

(888) 312-8812 Login SignupDELPHI TC770 Control Arm and Ball Joint Assembly
Tap to view 13 more
MSRP: $90.86
$8899
Save $1.87
Limited availability at this price!
In Stock
Get it by Tuesday, Jun 16
DELPHI TC770 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC770 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 125.00 MM |
| Control Arm Maximum Width | 4.921 IN |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 71.00 MM |
| Control Arm Maximum Length | 450.00 MM |
| Control Arm Maximum Length | 17.717 IN |
| Mounting Hole Diameter | 14.50 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Stud Length | 2.795 IN |
| Thread Diameter | 0.472 IN |
| Mounting Hole Diameter | 0.571 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604260142 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC770 Cross References
| Brand | Part Number |
|---|---|
| Audi | 4D0 407 694 AD, 4D0 407 694 N, 4D0 407 694AC, 4D0 407 694E, 4D0 407 694H, 4D0 407 694K, 4D0 407 694M, 8E0 407 694, 8E0 407 694 E, 8E0 407 694 K, 8E0 407 694 Q, 8E0 407 694AG, 8E0 407 694H, 8E0 407 694P |
| Beck/Arnley | 101-4965, 102-4965 |
| CORTECO | 49395176 |
| DORMAN | CB30834, CB30834PR |
| Dorman | 520-766 |
| MAS Industries | CB30834, CB30834PR |
| MEYLE | 1160500210, 1160508300/HD |
| MOOG Chassis Products | CK80563, RK80563 |
| Mevotech | CMK80563, MK80563 |
| N/A | GK80563, 102-6888, 520-765 |
| Skoda | 4D0 407 694 N, 4D0 407 694AC, 4D0 407 694E, 4D0 407 694H, 4D0 407 694K, 4D0 407 694M, 8E0 407 694, 8E0 407 694 E, 8E0 407 694 K, 8E0 407 694H, 8E0 407 694P |
| TRW | JTC350 |
| VAICO | V10-7010-1 |
| Volkswagen | 4D0 407 694 AD, 4D0 407 694 N, 4D0 407 694AC, 4D0 407 694E, 4D0 407 694H, 4D0 407 694K, 4D0 407 694M, 8E0 407 694, 8E0 407 694 E, 8E0 407 694 K, 8E0 407 694AG, 8E0 407 694H, 8E0 407 694P |
DELPHI TC770 Fits Vehicles
- Audi RS6 (2003-2004)
- Audi S6 (2002-2003)
- Audi S8 (2001-2003)
- Audi S4 (2000-2002, 2004-2006)
- Audi A6 Quattro (1998-2004)
- Audi A8 Quattro (1997-2003)
- Audi A8 (1997-1999)
- Audi A6 (1997-2004)
- Volkswagen Passat (1996-2005)
- Audi A4 Quattro (1996-2006)
- Audi A4 (1996-2006)
