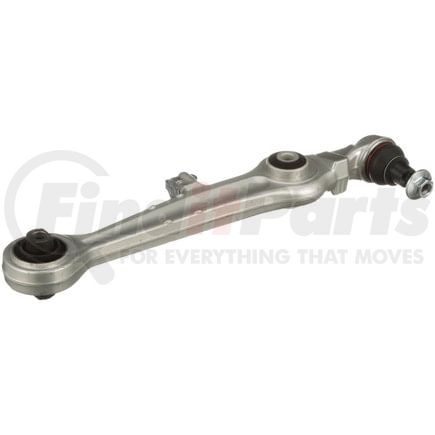

(888) 312-8812 Login SignupDELPHI TC768 Control Arm and Ball Joint Assembly
Tap to view 9 more
MSRP: $75.17
$6299
Save $12.18
Limited availability at this price!
In Stock
Get it by Thursday, Feb 12
DELPHI TC768 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC768 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower Forward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 5.118 IN |
| Control Arm Maximum Width | 130.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 71.00 MM |
| Control Arm Maximum Length | 15.157 IN |
| Control Arm Maximum Length | 385.00 MM |
| Mounting Hole Diameter | 14.50 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Stud Length | 2.795 IN |
| Thread Diameter | 0.472 IN |
| Mounting Hole Diameter | 0.571 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604260128 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC768 Cross References
| Brand | Part Number |
|---|---|
| Audi | 4D0 407 151 H, 4D0 407 151 J, 4D0 407 151A, 4D0 407 151B, 4D0 407 151D, 4D0 407 151E, 4D0 407 151G, 4D0 407 151K, 4D0 407 151P, 8D0 407 151E |
| Beck/Arnley | 101-4967, 102-4967 |
| CORTECO | 49398449 |
| DORMAN | CB30836, CB30836PR |
| Deeza | VW-H119 |
| Dorman | 520-762 |
| MAS Industries | CB30836, CB30836PR |
| MEYLE | 1160500205, 1160508228/HD |
| MOOG Chassis Products | CK90494, K90494, RK90494 |
| Mcquay-Norris | FA4045 |
| Mevotech | CMK90494, MK90494, MS20311, MS20312 |
| N/A | GK90494, 623.33156 |
| Raybestos Chassis | 507-1061 |
| Skoda | 4D0 407 151 J, 4D0 407 151E, 4D0 407 151G, 4D0 407 151P, 8D0 407 151E |
| TRW | JTC343 |
| VAICO | V10-3952 |
| Volkswagen | 4D0 407 151 H, 4D0 407 151 J, 4D0 407 151A, 4D0 407 151B, 4D0 407 151D, 4D0 407 151E, 4D0 407 151G, 4D0 407 151K, 4D0 407 151P, 8D0 407 151E |
DELPHI TC768 Fits Vehicles
- Audi S4 (2000-2002)
- Volkswagen Passat (1998-2003)
- Audi A6 Quattro (1998-2004)
- Audi A8 (1997-1999)
- Audi A8 Quattro (1997-1999)
- Audi A6 (1997-2002)
- Audi A4 (1996-2002)
- Audi A4 Quattro (1996-2002)
