(888) 312-8812 Login SignupDELPHI TC2233 Ball Joint
Tap to view 2 more
MSRP: $39.25
$3199
Save $7.26
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5

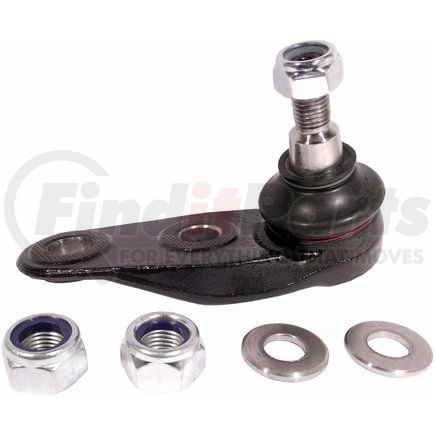

DELPHI TC2233 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC2233 Specifications
Product Attributes
| Position(s) | Front Left Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 3.228 IN |
| Maximum Outside Diameter | 82.00 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 82 MM |
| Type | Premium |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 2.126 IN |
| Height | 54.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.878 IN |
| Stud Thread Length | 22.3 MM |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 48.00 MM |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mounting Bolt Shank Diameter | 17.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.685 IN |
| Stud Tapered End 2 Diameter | 17.4 MM |
| Stud Tapered End 1 Diameter | 0.821 IN |
| Stud Tapered End 1 Diameter | 20.85 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 134.00 MM |
| Length | 5.280 IN |
| Mounting Bolt Shank Diameter | 0.670 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604256299 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC2233 Cross References
DELPHI TC2233 Fits Vehicles
- Mini Cooper (2002-2015)
