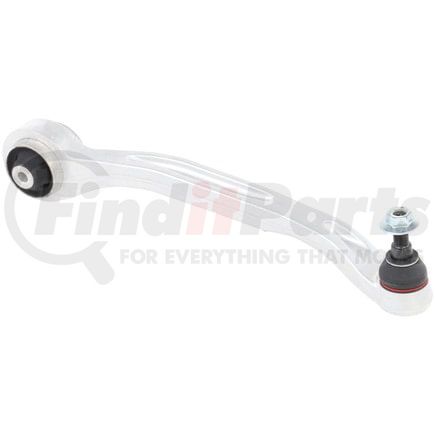

(888) 312-8812 Login SignupDELPHI TC1880 Control Arm and Ball Joint Assembly
Tap to view 23 more
MSRP: $190.88
$18449
Save $6.39
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5
DELPHI TC1880 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1880 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 100.00 MM |
| Control Arm Maximum Width | 3.937 IN |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 83.30 MM |
| Control Arm Maximum Length | 470.00 MM |
| Control Arm Maximum Length | 18.504 IN |
| Mounting Hole Diameter | 12.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 3.280 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.480 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604254363 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1880 Cross References
| Brand | Part Number |
|---|---|
| Audi | 4F0 407 694 B, 4F0 407 694 C, 4F0 407 694 G, 4G0 407 694 D |
| Beck/Arnley | 101-5981, 102-5981 |
| CORTECO | 49398759 |
| DORMAN | 520-984, CB12034, CB12034PR |
| Dorman | 520-991 |
| MAS Industries | CB12034 |
| MEYLE | 1160500064/HD |
| MOOG | RK620451 |
| MOOG Chassis Products | K620451, RK620451 |
| Mevotech | CMS70107 |
| N/A | CMS70106, 520984 |
| TRW | JTC1091, JTC2566 |
| VAICO | V10-0628 |
DELPHI TC1880 Fits Vehicles
- Audi S6 (2007-2011)
- Audi A6 (2006-2011)
- Audi A6 Quattro (2005-2011)
