DELPHI TC1821 Part Description
Manufacturer
Product Description

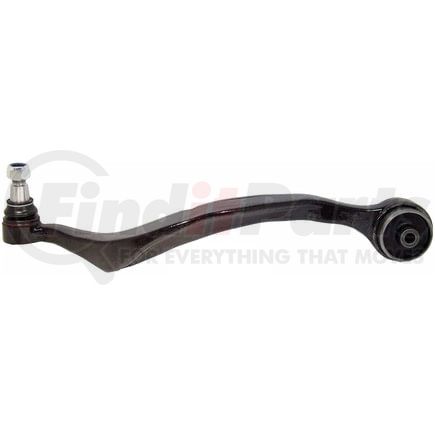

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1821 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 4.646 IN |
| Control Arm Maximum Width | 118.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 16.00 MM |
| Ball Joint Stud Length | 70.00 MM |
| Control Arm Maximum Length | 20.079 IN |
| Control Arm Maximum Length | 510.00 MM |
| Mounting Hole Diameter | 12.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 16.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.630 IN |
| Ball Joint Stud Length | 2.756 IN |
| Thread Diameter | 0.630 IN |
| Mounting Hole Diameter | 0.480 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604254097 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1821 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-5533, 102-5533 |
| CORTECO | 49399181 |
| DORMAN | CB65043, CB65043PR |
| Deeza | MD-H207 |
| Dorman | 520-889 |
| Ford | GJ6A-34-J50B, GP9A-34-J50C, GR1A-34-J50 |
| MAS Industries | CB65043, CB65043PR, CB65044 |
| MOOG | CK620278 |
| MOOG Chassis Products | CK620278, K620278, K620492, RK620278, RK620492, 102-5533 |
| Mazda | GJ6A-34-J50B, GJ6A-34-J50C, GJ6A-34-J50D, GP9A-34-J50C, GR1A-34-J50 |
| Mcquay-Norris | FA4488 |
| Mevotech | CMS76105, MS76105 |
| N/A | GR1B-34-J50, GJ6A34J50A, GJ6A34J050C, RK621249, GS76105, JTC2148, BE5Z 3079-A, 7E5Z 3079-L, 6M8Z 3079-L, 5M8Z 3079-L, CK620492, 623.61061 |
| Raybestos Chassis | 507-1361 |
| TRW | JTC3768 |
DELPHI TC1821 Fits Vehicles
- Lincoln MKZ (2007-2012)
- Lincoln Zephyr (2006)
- Mercury Milan (2006-2011)
- Ford Fusion (2006-2012)
- Mazda 6 (2003-2008)
