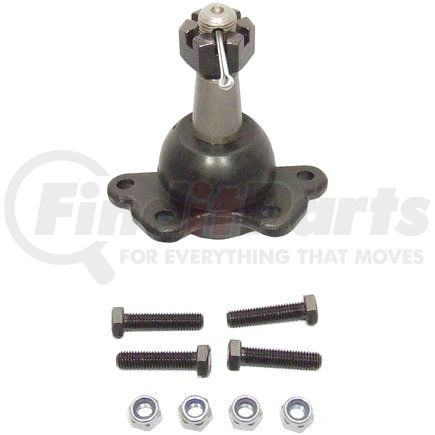

(888) 312-8812 Login SignupDELPHI TC1623 Ball Joint
Tap to view 2 more
$3549
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jul 23
DELPHI TC1623 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1623 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 1.870 IN |
| Maximum Outside Diameter | 47.50 MM |
| Color | Gray |
| Stud Thread Diameter | 0.63 IN |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 108.8 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.587 IN |
| Mounting Bolt Length | 40.30 MM |
| Washers Included | No |
| Height | 4.776 IN |
| Height | 121.30 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Stud Thread Length | 0.984 IN |
| Stud Thread Length | 25 MM |
| Wrench Size | 13mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 26.60 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.315 IN |
| Mounting Bolt Shank Diameter | 8.00 MM |
| Mounting Bolt Head Diameter | 0.567 IN |
| Mounting Bolt Head Diameter | 14.40 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 1.299 IN |
| Mounting Bolt Thread Length | 33.00 MM |
| Mounting Bolt Thread Diameter | 8.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.878 IN |
| Stud Tapered End 2 Diameter | 22.3 MM |
| Stud Tapered End 1 Diameter | 0.701 IN |
| Stud Tapered End 1 Diameter | 17.8 MM |
| Stud Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Diameter | 0.310 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604269411 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
DELPHI TC1623 Cross References
DELPHI TC1623 Fits Vehicles
- GMC Yukon (1995-1997)
- GMC K3500 (1989-2000)
- GMC K2500 Suburban (1992-1999)
- GMC K2500 (1988-2000)
- GMC K1500 Suburban (1995-1999)
- GMC Savana 3500 (1996-2002)
- GMC Savana 2500 (1996-2002)
- GMC C3500 (1989-2000)
- GMC C2500 Suburban (1992-1999)
- GMC C2500 (1989-2000)
- GMC C1500 Suburban (1995-1999)
- Chevrolet Tahoe (1995-1999)
- Chevrolet K3500 (1989-2000)
- Chevrolet K2500 Suburban (1992-1999)
- Chevrolet K2500 (1988-2000)
- Chevrolet K1500 Suburban (1995-1999)
- Chevrolet Express 3500 (1996-2002)
- Chevrolet Express 2500 (1996-2002)
- Chevrolet C3500 (1992-2000)
- Chevrolet C2500 Suburban (1992-1999)
- Chevrolet C2500 (1988-2000)
- Chevrolet C1500 Suburban (1995-1999)
