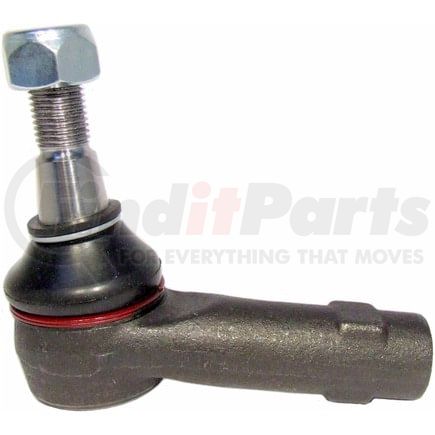

(888) 312-8812 Login SignupDELPHI TA2154 Tie Rod End
$2399
Limited availability at this price!
In Stock
Get it by Friday, Jun 12
DELPHI TA2154 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA2154 Specifications
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Length | 115.00 MM |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 46 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.630 IN |
| End 2 Thread Diameter | 16.00 MM |
| Height | 96.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.945 IN |
| Tube Diameter | 24.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.42 lb |
| Cone Outside Diameter | 20.20 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 3.504 IN |
| Length - Stud Center to End | 89.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 14.00 MM |
| End 1 Thread Diameter | 0.551 IN |
| Shank Length | 20.20 MM |
| Stud Length | 20.20 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.795 IN |
| Stud Length | 0.795 IN |
| Cone Outside Diameter | 0.795 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604247525 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
DELPHI TA2154 Cross References
| Brand | Part Number |
|---|---|
| Audi | 7L0 422 817 C, 7L0 422 817 D, 955 347 131 20, 955 347 131 21, 955 347 131 22 |
| Beck/Arnley | 101-5729 |
| CORTECO | 49399104 |
| DORMAN | TO43073, TO43073PR |
| Deeza | VW-T214 |
| Import Direct | ER08001 |
| MAS Industries | TO43073 |
| MEYLE | 116 020 0005 |
| MOOG Chassis Products | ES800655, 101-5729 |
| Mcquay-Norris | ES4698 |
| Mevotech | CMS70600, MS70600 |
| N/A | 612.33077 |
| Porsche | 955 347 131 20, 955 347 131 21, 955 347 131 22 |
| TRW | JTE1090 |
| VAICO | V10-0642 |
| Volkswagen | 7L0 422 817 C, 7L0 422 817 D, 7L0 422 817B |
DELPHI TA2154 Fits Vehicles
- Audi Q7 (2007-2015)
- Volkswagen Touareg (2004-2017)
- Porsche Cayenne (2003-2006, 2008-2018)
