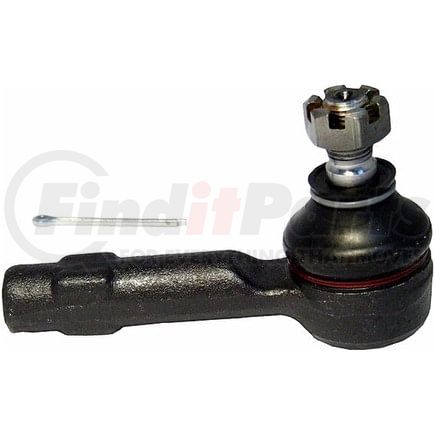

(888) 312-8812 Login SignupDELPHI TA2126 Tie Rod End
SHIPS MONDAY
MSRP: $25.32
$2099
Save $4.33
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TA2126 Part Description
DELPHI TA2126 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Color | Gray |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 38 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 69.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.787 IN |
| Tube Diameter | 20.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.83 lb |
| Cone Outside Diameter | 15.50 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 3.701 IN |
| Length - Stud Center to End | 94.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 15.50 MM |
| Stud Length | 15.50 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.610 IN |
| Stud Length | 0.610 IN |
| Cone Outside Diameter | 0.610 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604247518 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA2126 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4571 |
| MOOG Chassis Products | ES3438, ES800527 |
| Mcquay-Norris | ES3438 |
| Mevotech | MES3407, MES3438 |
| Deeza | IN-T612 |
| Datsun/Nissan | 48520-0M085, 48520-15U25, 48520-15U26, 48520-60Y25, 48520-71L25, D852015U26 |
| MAS Industries | T3438, 534-601 |
| TRW | JTE1465, JTE572 |
| Import Direct | ER02002 |
| N/A | ES3407, GES3407, 534-601, GES3438, TXMS30686 |
DELPHI TA2126 Fits Vehicles
- Nissan Maxima (1995-2008)
- INFINITI I35 (2002-2004)
- INFINITI I30 (1996-2001)
- Nissan Altima (2002-2006)
- Nissan 240SX (1995-1998)
