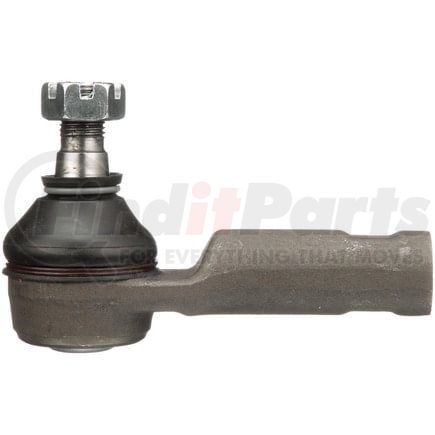

(888) 312-8812 Login SignupDELPHI TA1254 Tie Rod End
Tap to view 2 more
$3099
Limited availability at this price!
5 Day Lead Time
Get it by Monday, Feb 23
DELPHI TA1254 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA1254 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Color | Gray |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 38 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.472 IN |
| End 2 Thread Diameter | 12.00 MM |
| Height | 69.50 MM |
| Housing Material | Steel |
| Tube Diameter | 0.866 IN |
| Tube Diameter | 22.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.97 lb |
| Cone Outside Diameter | 15.60 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.25 MM |
| Length - Stud Center to End | 3.465 IN |
| Length - Stud Center to End | 88.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 15.60 MM |
| Stud Length | 15.60 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.614 IN |
| Stud Length | 0.614 IN |
| Cone Outside Diameter | 0.614 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604271513 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA1254 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-3620 |
| DORMAN | T3602, T3602PR |
| Datsun/Nissan | 48520-0M025 |
| Import Direct | ER02083 |
| MAS Industries | T3602, 534-588 |
| MOOG Chassis Products | ES3602 |
| Mevotech | MES3602 |
| N/A | T3602PR, JTE266, GES3602, 48520-35F25, 48520-4B000, 4852073J25, 4852073J35, 4852076J25, 485209C025, 48520-D0100, 48520-D0125, 48520-D0126, MES2333 |
DELPHI TA1254 Fits Vehicles
- Nissan Sentra (1998-1999)
- Nissan 200SX (1998)
DELPHI TA1254 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TA1254 Questions & Answers
No questions yet
Be the first to ask a question about this product!
