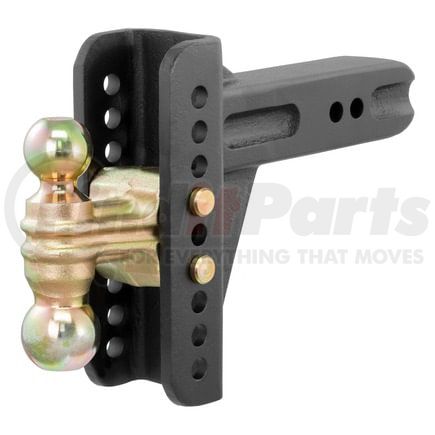

Name: CURT Manufacturing 45902 Adjustable Channel Mount with Dual Ball (2-1/2in. Shank; 20;000 lbs.; 6in. Drop)
SKU: 45902
Price: 458.99 USD
Availability: InStock

CURT MANUFACTURING part description

Product Description

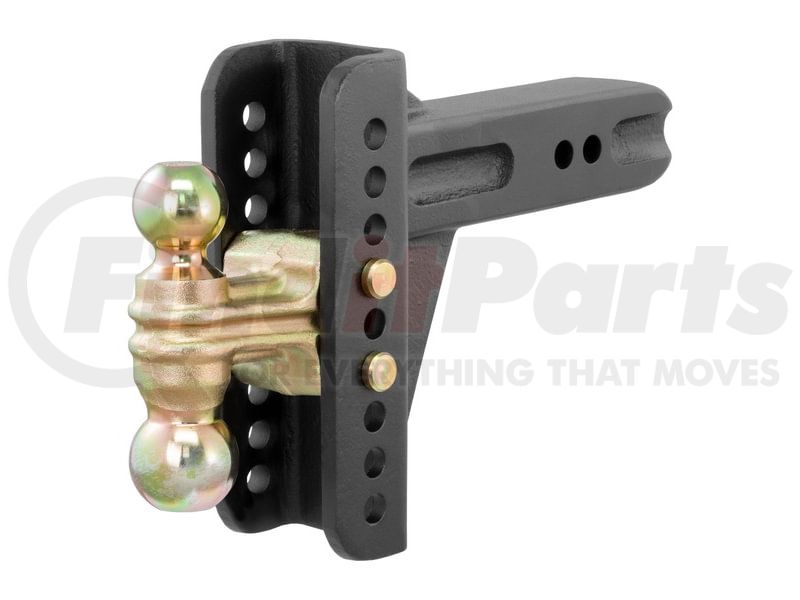

Adjustable Channel Mount with Dual Ball (2-1/2in. Shank; 20;000 lbs.; 6in. Drop)

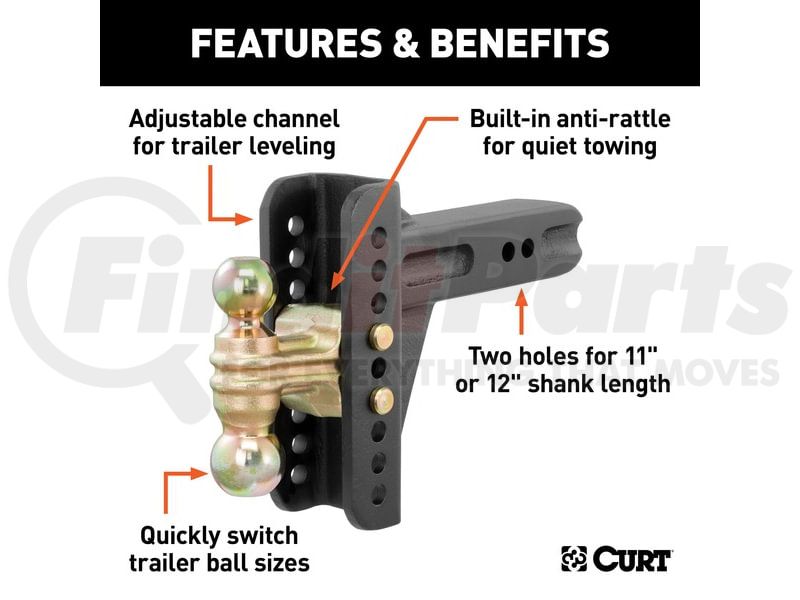

Features & Benefits

Mounts On Trailer Hitches w/A 2 1/2 In. X 2 1/2 In. Receiver
Mounts on trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening

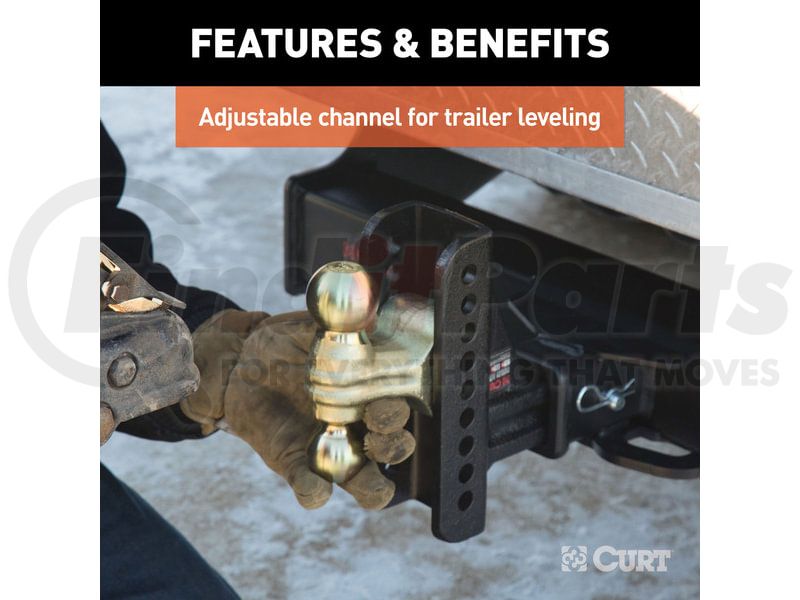

Adjustable Channel Mount Allows For Precise Trailer Leveling
Fits 2 In. And 2 5/16 In. Couplers And Accepts Up To 14000 Lbs.

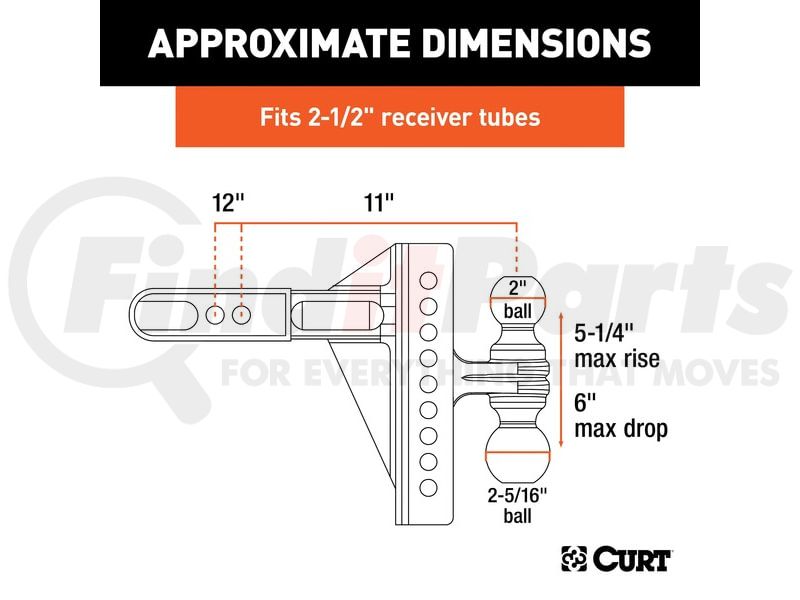

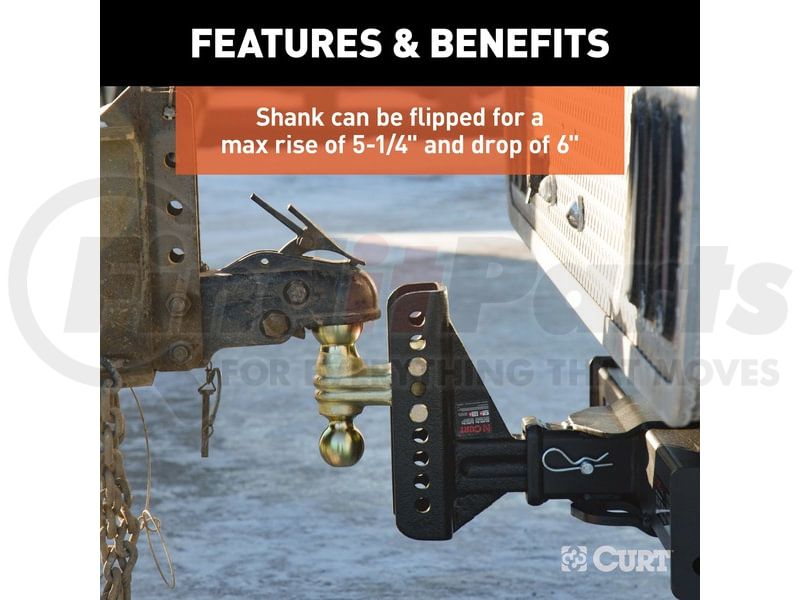

Shank can be flipped for a max rise of 5-1/4" and drop of 6"
Can Be Flipped For A Max Rise Of 5 1/4 In. And Drop Of 6 In.
2" ball rated for 10,000 lbs. and 2-5/16" ball rated for 20,000 lbs.
Two Hitch Pin Holes Provide Shank Lengths Of 11 In. Or 12 In.
Two hitch pin holes provide shank lengths of 11" or 12"

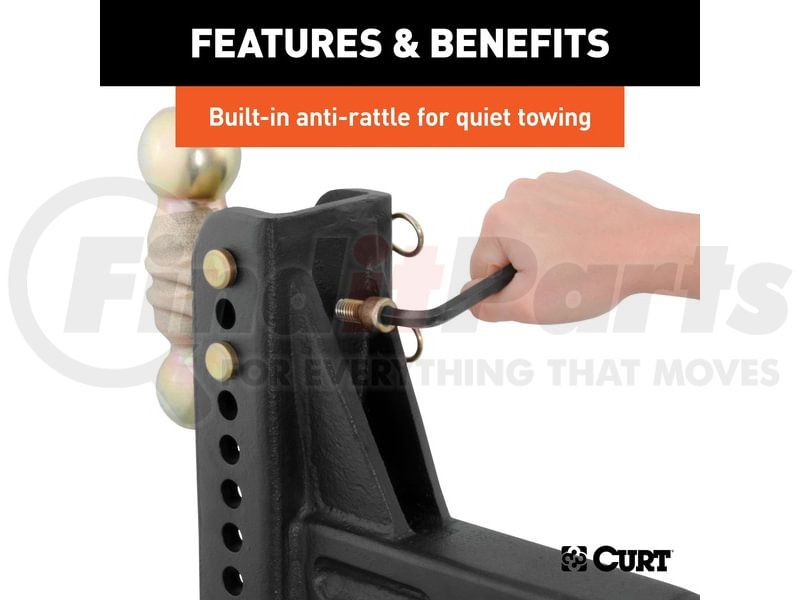

Built-In Anti-Rattle Helps Promote Quiet Towing
Protected By A Highly Durable Carbide Powder Coat Finish
Patent# Us8033563
Limited lifetime warranty (one-year finish, one-year parts)

Mounts on trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening

Product Attributes

Drop	No Drop
Finish	Carbide Black Powder Coat
Overall Length	N/A
Rise	No Rise
Style	Adjustable
WARNING CA Proposition 65	No
Ball 1 Diameter And Capacity	2 IN - 10,000 LB
Ball 2 Diameter And Capacity	2-5/16 IN - 20,000 LB
BALL DIAMETER	2 IN or 2-5/16 IN
Box Height In Inches - Xa	0
Box Length In Inches - Xa	0
Box Width In Inches - Xa	0
Class Id	0
Container Cases Qty - XA	0
Container Pallet Qty - XA	0
Container Unit Qty - XA	0
Container Volume Cubic Feet - XA	0.00000
Container Volume Cubic Meter - XA	0.00000
Container Weight KG - XA	0
Container Weight Lbs - XA	0
Finish - Xa	CARBIDE BLACK POWDER COAT

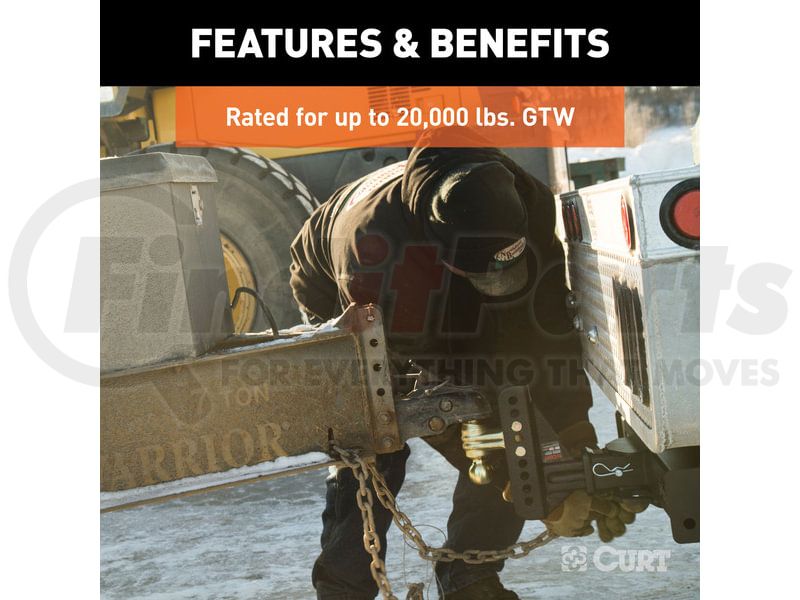

Gross Trailer Weight (gtw)	20,000 LB
Item Class - Xa	OBS
Item Height - Xa	0.000
Item Length - Xa	0.000
Item Width - Xa	0.000
Master Case Height Inches - XA	5.000
Master Case Inner Pack Qty - XA	0
Master Case ITF14	0
Master Case ITF14 - XA	0
Master Case Length Inches - XA	13.500
Master Case Qty - XA	1
Master Case Volume Cubic Feet - XA	0.00000
Master Case Weight Lbs - XA	39.000
Master Case Width Inches - XA	12.000
Material - Xa	Blank
Max Drop	6 IN
Max Rise	5-1/4 IN
Mount Type Description - Xa	Blank
Pallet Case Per - XA	45
Pallet Case Per Layer - XA	9
Pallet Cases Per - XA	45
Pallet Cases Per Layer - XA	9
Pallet Layer of Cases - XA	5
Pallet Qty - XA	0.000
Pallet Total Height Inches - XA	32.000
Pallet Total Weight Per - XA	1805.000
Parcel Allowed - Xa	Yes
Product Weight - Xa	0.000
Prop 65 Label Text - XA	Blanks
Prop 65 Material - XA	Unknown
Prop 65 Reason - XA	Unknown
Prop 65 Warning Label Type - XA	Unknown
Prop 65 Warning Y/N - XA	NO
Rate Class - Xa	60.0
Receiver Tube Size	2-1/2 IN
Retail Height - Xa	5.000
Retail Length - Xa	13.500
Retail Width - Xa	11.500
Sales Family Code - Xa	ACCES
Sales Family Description - Xa	ACCESSORIES
Sales Group Description - Xa	BALL MOUNT
Shank Length	11 IN or 12 IN
Shipping Weight - Xa	38.000
Side Application Type Description - Xa	Blank
Tariff 301 - Xa	No
Title	Adjustable Channel Mount with Dual Ball (2-1/2" Shank, 20,000 lbs., 6" Drop)
Truckload Cases Qty - XA	0
Truckload Pallets Qty - XA	0
Truckload Units Qty - XA	0
Truckload Volume Cubic Feet - XA	0.00000
Truckload Weight - XA	0
Warranty	Limited Lifetime Warranty (One-Year Finish, One-Year Parts)

Additional Information

Country of Origin (Primary)	IN
Harmonized Tariff Code (Schedule B)	8708998180
Harmonized Tariff Code (HTS)	8708998180
NAFTA Preference Criterion Code	B
Warranty Special	Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Warranty Special UOM	TX
UPC	00612314459025
