CURT Manufacturing 40089 - 3in. Trailer Ball (2in. x 3-1/4in. Shank; 30;000 lbs.; Raw Steel)
- Part Number
- 40089
- Manufacturer
- CURT MANUFACTURING
- Description
-
3in. Trailer Ball (2in. x 3-1/4in. Shank; 30;000 lbs.; Raw Steel)
details
$8399
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CURT MANUFACTURING part description
Product Description
3in. Trailer Ball (2in. x 3-1/4in. Shank; 30;000 lbs.; Raw Steel)

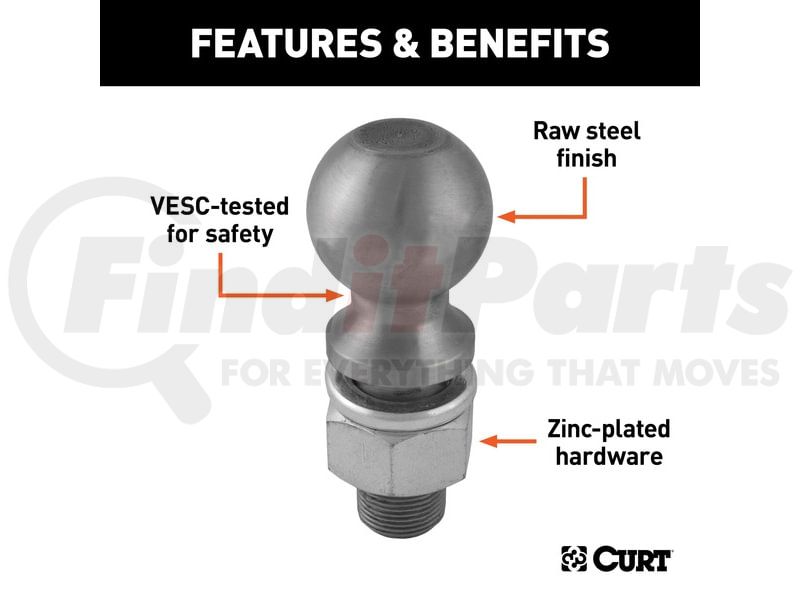

Features & Benefits
- Fits 3 In. Couplers And Accepts Up To 30000 Lbs. Tw
- Fits 3" couplers and accepts up to 30,000 lbs. GTW
- Constructed From High-Strength Raw Steel
- Ideal for gooseneck and custom, heavy-duty towing application
- Heat-Treated For Optimum Wear Resistance
- Zinc-Plated Hex Nut And Helical Lock Washer For Secure Mounting
- Tested For Safety To Meet U.S. Vesc V-19 Specifications
- Limited lifetime warranty (one-year finish, one-year parts)
Fits 3" couplers and accepts up to 30,000 lbs. GTW
Product Attributes
| BALL DIAMETER | 3 IN |
| Ball Shank Diameter | 2.000 in. |
| Color | Raw Steel |
| Finish | Raw |
| Gross Load | 30000 lbs. |
| Shank Length | 3 1/4 IN |
| Torque Capacity | 4550 ft/lbs. |
| WARNING CA Proposition 65 | No |
| Container Volume Cubic Feet - XA | 0.00000 |
| Container Volume Cubic Meter - XA | 0.00000 |
| Container Weight KG - XA | 0 |
| Container Weight Lbs - XA | 35200 |
| Finish - Xa | RAW |
| Item Class - Xa | OBS |
| Item Height - Xa | 0.000 |
| Item Length - Xa | 0.000 |
| Item Width - Xa | 0.000 |
| Master Case Height Inches - XA | 7.000 |
| Master Case Inner Pack Qty - XA | 0 |
| Master Case ITF14 | 60612314400890 |
| Master Case ITF14 - XA | 60612314400890 |
| Master Case Length Inches - XA | 8.500 |
| Master Case Qty - XA | 6 |
| Master Case Volume Cubic Feet - XA | 0.00000 |
| Master Case Weight Lbs - XA | 53.000 |
| Master Case Width Inches - XA | 6.500 |
| Material - Xa | FORGED STEEL |
| Mount Type Description - Xa | Blank |
| Pallet Case Per - XA | 66 |
| Pallet Case Per Layer - XA | 22 |
| Pallet Cases Per - XA | 66 |
| Pallet Cases Per Layer - XA | 22 |
| Pallet Layer of Cases - XA | 3 |
| Pallet Qty - XA | 6.000 |
| Pallet Total Height Inches - XA | 25.000 |
| Pallet Total Weight Per - XA | 3520.000 |
| Parcel Allowed - Xa | Yes |
| Product Weight - Xa | 0.000 |
| Prop 65 Label Text - XA | Blanks |
| Prop 65 Material - XA | Unknown |
| Prop 65 Reason - XA | Unknown |
| Prop 65 Warning Label Type - XA | Unknown |
| Prop 65 Warning Y/N - XA | NO |
| Rate Class - Xa | 60.0 |
| Retail Height - Xa | 3.500 |
| Retail Length - Xa | 7.750 |
| Retail Width - Xa | 3.500 |
| Sales Family Code - Xa | ACCES |
| Sales Family Description - Xa | ACCESSORIES |
| Sales Group Description - Xa | TRAILER BALLS |
| Shank Diameter | 2 |
| Shank Rise | 0 IN |
| Shipping Weight - Xa | 11.700 |
| Side Application Type Description - Xa | Blank |
| Tariff 301 - Xa | Yes |
| Title | 3" Trailer Ball (2" x 3-1/4" Shank, 30,000 lbs., Raw Steel) |
| Torque | 4550 FT LB |
| Truckload Cases Qty - XA | 0 |
| Truckload Pallets Qty - XA | 0 |
| Truckload Units Qty - XA | 0 |
| Truckload Volume Cubic Feet - XA | 0.00000 |
| Truckload Weight - XA | 0 |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Ball Capacity | 30,000 LBS |
| Box Height In Inches - Xa | 2 |
| Box Length In Inches - Xa | 7 |
| Box Width In Inches - Xa | 4 |
| Class Id | 0 |
| Container Cases Qty - XA | 660 |
| Container Load Type - XA | PALLETS |
| Container Pallet Qty - XA | 10 |
| Container Type - XA | 20GP |
| Container Unit Qty - XA | 3960 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708998180 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| NAFTA Preference Criterion Code | B |
| Warranty Special | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Warranty Special UOM | TX |
| UPC | 00612314400898 |
