Redneck Trailer 8-222-4 - Dexter 5 Spoke Hub & Drum Only for 4.5K Mobile Home Axles

Dexter 12" x 2" 5-Spoke UTG Hub & Drum For 4.5k Axles

Dexter hub & drum only. There is no need to worry about the races as they are already pressed into the hub for you. The grease seal, grease cap, rim clamps, and nuts for the hub are sold separately. Each hub & drum has a capacity of 2,250lbs. Spindle nut and spindle washer sold separately. This hub is also available in a kit.

The following items are sold separately:

• 1 L68149 Inner Bearing (1.375" ID)
• 1 LM67048 Outer Bearing (1.25" ID)
• 1 L67010 Outer Race (Already Pressed In) 2.328"
• 1 L68111 Inner Race (Already Pressed In) 2.361"
• 1 10-40 Grease Seal (1.938" x 2.510")
• 1 45896 Grease Cap (2.44" OD)
• 1 21-42-1 Grease Cap (2.44" OD)
• 1 85-1 Grease Cap Plug
• 5 15-2 Rim Clamps
• 5 090753 Lug bolts
• 1 5-Spoke Hub & Drum
• 2,250lb Capacity Per Hub
• Use with a 12" x 2" brake



Please refer to the diagram Image for these measurements

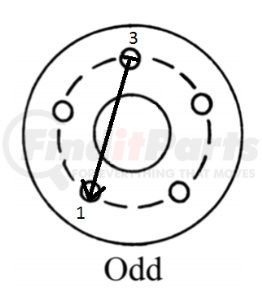

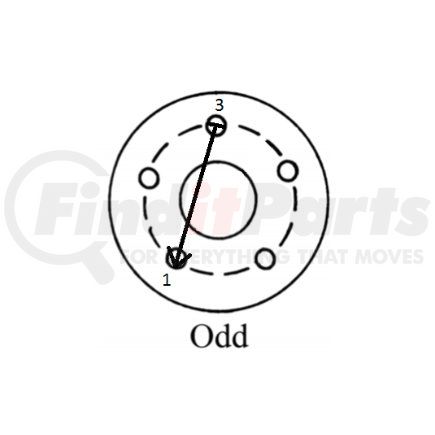

To determine the bolt circle on hubs or wheels with an odd number of bolt holes, measure from outside to center of the studs across the pattern(bolt patterns are always measured in inches). Example: If you were to number the studs 1, 2, 3, then you would measure from the outside of stud 1 to the center of stud 3.
