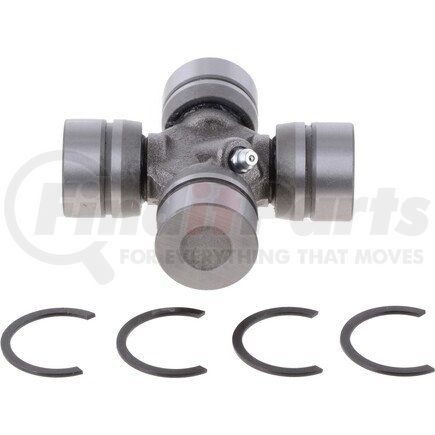

(888) 312-8812 Login SignupDANA 5-3221X Universal Joint Greaseable Toyota Series; 1977 and up Land Cruiser
Tap to view 5 more
$6899
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 16
DANA 5-3221X Part Description
Manufacturer
Features & Benefits
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
| Greaseable: | Y |
| Type: | ISR Style |
| OEM Mfg: | Toyota |
| Bearing Cap Diameter: | 1.26 in. |
| Snap Ring: | 2.52 in. |
| Snap Ring Type: | Internal |
| Snap Ring Included: | Y |
| Material: | Steel |
| Hardware Included: | N |
| Length A (IN): | 2.52 |
| Length B (IN): | 2.52 |
| Bearing Cap Type: | ISR |
DANA 5-3221X Specifications
Product Attributes
| Material | Steel |
| Bearing Cap Diameter (1) | 1.26 IN |
| OEM Mfg | Toyota |
| Type | ISR Style |
| Bearing Cap Diameter (2) | 1.26 IN |
| Snap Ring Included | Y |
| Snap Ring Type | Internal |
| Greaseable | Y |
| Bearing Cap Diameter A (mm) | 32 MM |
| Bearing Cap Diameter B (mm) | 32 MM |
| Bearing Cap Type A | ISR |
| Bearing Cap Type B | ISR |
| Hardware Included | N |
| Length A (In) | 2.52 IN |
| Length A (mm) | 64.008 MM |
| Length B (In) | 2.52 IN |
| Length B (mm) | 64.008 MM |
| Sr(1)brng Cap To Brng Cap(osr) | 2.520 |
| Sr(2)brng Cap To Brng Cap(osr) | 2.520 |
| Bearing Cap Type | Round with ISR Groove |
| Grease Zerk Included | Y |
| Grease Fitting Location | Side of Cross |
| Mounting Hardware Included | N |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708996810 |
| Harmonized Tariff Code (HTS) | 8708996810 |
| UPC | 00023913464356 |
| VMRS Code | 024002046 |
DANA 5-3221X Part Interchanges
| Brand | Part Number |
|---|---|
| Precision | 389 |
| MOOG Chassis Products | 389 |
| SKF | 2-0020, UJ389 |
| MasterPro | 389 |
| Neapco OE Series | 2-0020 |
| Dana Commercial Vehicle Service Parts | 5-1511X |
| Toyota | 0437136020, 04371-36020, 0437136021, 04371-36021, 0437136030, 04371-36030, 0437160210, 04371-60210 |
| Lexus | 0437136030, 04371-36030, 0437160210, 04371-60210 |
| Navistar | DS53221X, E51511X |
DANA 5-3221X Manufacturer Information
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
