PERMCO part description

Product Info

  • Dual Ported - Standard 1-1/2” NPT rear ports and up to 1-1/2” NPT side ports
  • Pressure balanced wear plates maintain high pump efficiency throughout all operating ranges
  • Bi-Rotational Pump/Motor designed to fit a wide variety of
  • applications
  • Doweled and high strength cast iron construction
  • High strength alloy steel gear and shaft sets
  • Standard SAE “B” 2 & 4 Bolt mounting flange
  • Standard SAE “B” Spline Output Shaft
  • Cubic inch displacements from 4.50 through 7.07
  • Working pressure up to 3000 PSI
  • Speeds up to 3000 RPM
  • Porting, mounting, and shaft options available
  • 100% factory tested

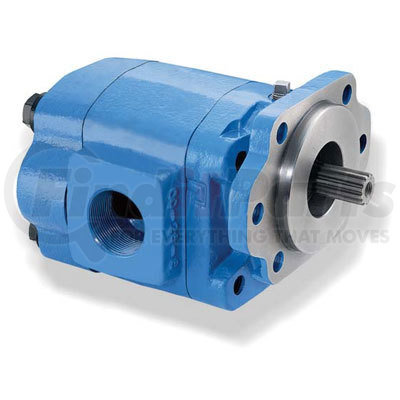

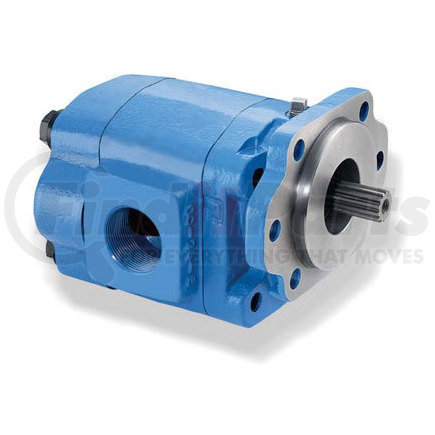

P5151A224AAXK20-54 Specifications:

  • Permco Dual Ported Pump
  • 2/4 Bolt Mount
  • SAE B - 7/8”-13T Spline Shaft
  • 1-1/4” NPTF Side & 1-1/2” Rear Ports
  • 2” Gear Width
  • 5.15 cu in. per rev
  • 19.5GPM @ 1000 RPM @ 3000 PSI

Permco® is the industry-leading manufacturer of high-pressure hydraulic gear/vane pumps and motors, flow dividers, intensifiers, and accessories. Established in 1964, the Perfection Machining Company initially designed and manufactured replacement parts for the mining industry. After it was renamed Permco four years later, this family-owned business developed a wide array of replacement hydraulic parts. Eventually, it expanded its manufacturing capabilities to include cast iron parts and the resulting complete units. Today, Permco focuses more on customer service while continuing its decades-long tradition of developing and manufacturing fluid power systems that meet customers' needs. Permco's product offering now includes flow dividers, intensifiers, gear and vane pumps/motors, and a variety of truck parts and accessories.
