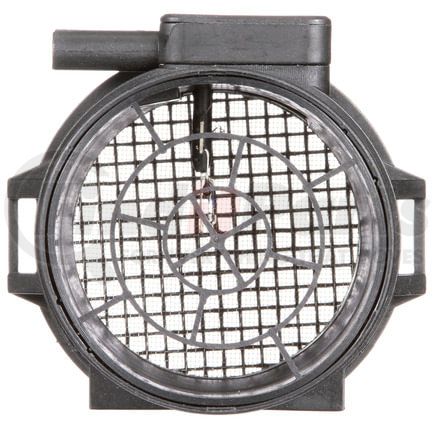

(888) 312-8812 Login SignupDELPHI AF10223 Mass Air Flow Sensor
MSRP: $327.69
$21499
Save $112.70
Limited availability at this price!
In Stock
Get it by Tuesday, Feb 10
DELPHI AF10223 Part Description
Manufacturer
Product Description
Mass Air Flow Sensor
Features & Benefits
- Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
- Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
- Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
- All parts are calibrated and tested to match the OE part
- Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
- Delphi OE technology validated to match the vehicle applications
DELPHI AF10223 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Complete Assembly |
| Item Grade | Premium |
| Color | Black and Silver |
| Housing Included | Yes |
| Inlet Connection Diameter | 3.173 IN |
| Inlet Connection Diameter | 80.6 MM |
| Outlet Connection Diameter | 3.2 IN |
| Outlet Connection Diameter | 80.6 MM |
| Terminal Type | Pin |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Housing Material | Plastic |
| Terminal Quantity | 6 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Clip |
| Mounting Bracket Included | No |
| Sensor Casing Length | 79.4 MM |
| Sensor Casing Width | 100 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | No |
| Seal Quantity | 0 |
| Sensor Casing Length | 3.1 IN |
| Sensor Casing Width | 3.9 IN |
| Intake Air Temperature (IAT) Included | Yes |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 9026802000 |
| UPC | 00689604238059 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10223 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 2134557 |
| BMW | 13 62 7 513 957, 13 62 7 566 984 |
| BWD | MA1126 |
| Blue Streak Electronics New | MF21174N |
| CARDONE Reman | 74-10124 |
| Carquest | MQ7284 |
| GLOBAL PARTS DISTRIBUTORS | 1813388 |
| HELLA | 358095891 |
| N/A | 13627566984, 213-4557, 245-1174, MF21174 |
| NAPA Reman Computers | XTP410124 |
| NGK SPARK PLUGS | MG0106 |
| NTK | MG0106 |
| SPECTRA PREMIUM | MA396 |
| STANDARD IGNITION | MAS0289 |
| Standard Motor Products | MAS0289 |
| VDO | A2C59511576 |
| WAI | MAF10223T |
| WALKER PRODUCTS | 245-1174 |
| Wells | SU6951 |
DELPHI AF10223 Fits Vehicles
- BMW X3 (2004-2005)
- BMW Z4 (2003-2005)
- BMW 325i (2003-2005)
- BMW 325Ci (2003-2006)
