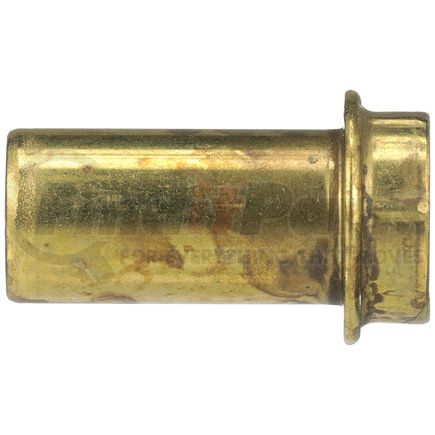

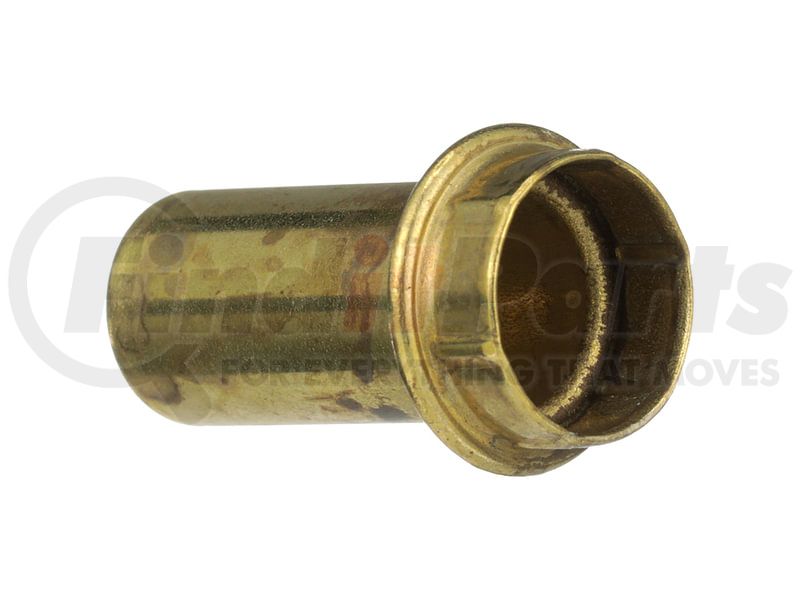

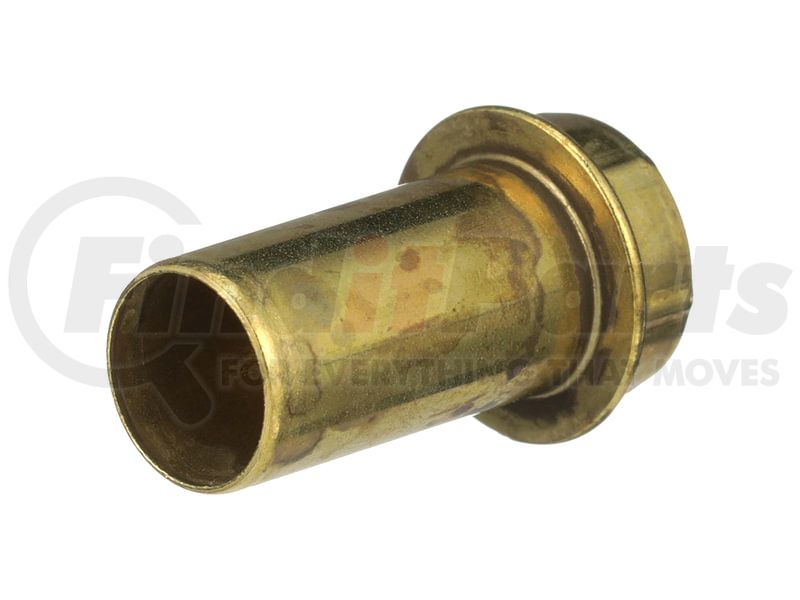

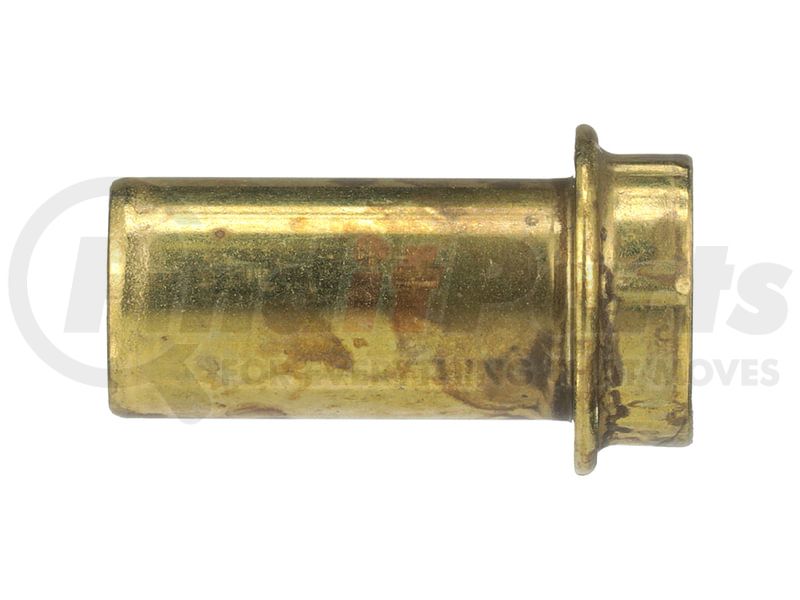

GATES G32040-0006B - Hydraulic Coupling/Adapter - Tube Support Insert (Nylon Tubing Compression)
$055
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description
Tube Support Insert (Nylon Tubing Compression)
Features & Benefits
- Meets DOT FMVSS 571.106, SAE J246, SAE J1131, DIN 74324 and German TUV requirements
- For use with SAE J844 and DIN 74324 nylon tubing
- Temperature Range: -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C)
Product Attributes
| Coupling Description | Nylon Tubing Compression Tube Support Insert |
| Industrial Description | 6TSI-ABCB |
| Outside Diameter | .375 IN |
| Maximum Working Pressure | 150 PS |
| Temperature Rating | -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C) |
| Material | 360 Brass |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7412200015 |
| UPC | 00770075616603 |
| VMRS Code | 059032033 |
| UNSPSC | 27121700 |
