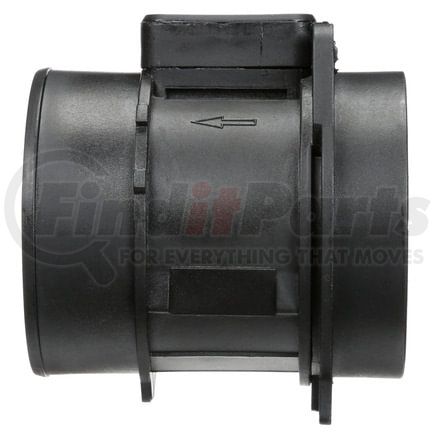

(888) 312-8812 Login SignupDELPHI AF10236 Mass Air Flow Sensor
$28699
Limited availability at this price!
5 Day Lead Time
Get it by Wednesday, Feb 25
DELPHI AF10236 Part Description
Manufacturer
Product Description
Mass Air Flow Sensor
Features & Benefits
- Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
- Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
- Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
- All parts are calibrated and tested to match the OE part
- Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
- Delphi OE technology validated to match the vehicle applications
DELPHI AF10236 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Complete Assembly |
| Item Grade | Premium |
| Color | Black and Silver |
| Housing Included | Yes |
| Inlet Connection Diameter | 2.752 IN |
| Inlet Connection Diameter | 69.9 MM |
| Outlet Connection Diameter | 2.8 IN |
| Outlet Connection Diameter | 71.3 MM |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Quantity | 1 |
| Connector Shape | Oval |
| Mounting Hole Quantity | 2 |
| Housing Material | Plastic |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 83 MM |
| Sensor Casing Width | 98 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | No |
| Bolt Hole Center To Bolt Hole Center | 90.90 MM |
| Mounting Hole Diameter | 6.5 MM |
| Seal Quantity | 0 |
| Sensor Casing Length | 3.2 IN |
| Sensor Casing Width | 3.8 IN |
| Bolt Hole Center To Bolt Hole Center | 3.50 IN |
| Mounting Hole Diameter | 0.2 IN |
| Intake Air Temperature (IAT) Included | Yes |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 9026802000 |
| UPC | 00689604239438 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10236 Cross References
| Brand | Part Number |
|---|---|
| BWD | 59106, MA1076 |
| Beck/Arnley | 158-0887 |
| Blue Streak Electronics New | MF21172N |
| CARDONE Reman | 74-10122 |
| CONTINENTAL AG | 5WK9613Z |
| Carquest | MQ7349 |
| Dorman | 917-878 |
| Duralast | DL-6105 |
| GLOBAL PARTS DISTRIBUTORS | 1813332 |
| Mercedes-Benz | 111 094 01 48 |
| N/A | 1110940148, MQ7355, 245-1205, A 111 094 01 48 |
| NAPA Reman Computers | XTP410122 |
| NGK SPARK PLUGS | MG0140 |
| NTK | MG0140 |
| STANDARD IGNITION | MAS0238 |
| Spectra Premium | MA258 |
| Standard Motor Products | MF21172, MAS0238 |
| VDO | 5WK9613Z |
| WAI | MAF10236T |
| WALKER PRODUCTS | 245-1205 |
| Wells | SU14816 |
DELPHI AF10236 Fits Vehicles
- Mercedes-Benz SLK230 (2003-2004)
- Mercedes-Benz C230 (2002)
