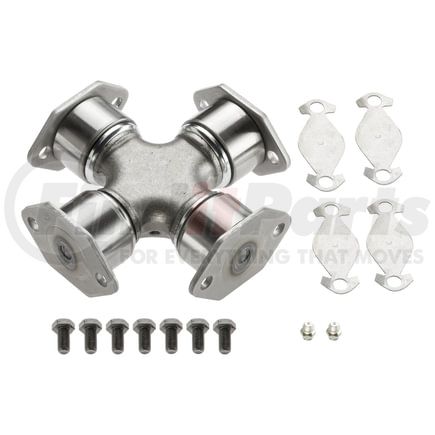

MOOG 333 - Universal Joint
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
MOOG part description
California Proposition 65 Warning
Product Description
Greaseable Premium Universal Joint
Features & Benefits
- BUILT TO LAST -- Rugged design specifically engineered for fleets, off-highway and commercial vehicles
- STRONG AND DURABLE -- Bearing cups are cold-formed, case-hardened and precision ground for strength and durability
- KEEPS DIRT OUT -- Abrasion-resistant nitrile seals provide ideal grease retention and protection from under-vehicle contaminants
- GREASEABLE DESIGN -- Drilled and tapped grease fitting holes for easy servicing and cross trunnions with large grease reservoirs with radial grease channels for grease distribution
- INHIBITS PREMATURE WEAR -- Cross trunnions ground to a 15-25 RMS finish for a smooth surface free of microscopic grooves that can cause premature wear
- RELIABLE PERFORMANCE -- Internal anti-drainback valve integrated into thrust washer controls lubrication flow and prevents dry startup
- RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
Product Attributes
Bearing Cap Axis 1 Diameter | 1.875 IN |
Bearing Cap Axis 1 Diameter | 47.6 MM |
Bearing Cap Axis 2 Diameter | 1.875 IN |
Bearing Cap Axis 2 Diameter | 47.6 MM |
Bearing Cap Type | 4 Welded Plate Type Round Bearings |
Bearing Type A | Round Welded Plate |
Bearing Type B | Round Welded Plate |
Length Axis 1 | 5.312 IN |
Length Axis 1 | 134.9 MM |
Length Axis 2 | 5.312 IN |
Length Axis 2 | 134.9 MM |
Length Measurement A | Inside of Welded Plate to Inside of Welded Plate |
Length Measurement B | Inside of Welded Plate to Inside of Welded Plate |
LUBE FITTING LOCATION | Two regular lube fittings in cross |
Greasable | YES |
OE Series | Spicer 1610 |
U-Joint Identification | 4 Welded Plate Type Round Bearings |
Part Description | Universal Joint |
Additional Information
Country of Origin (Primary) | MX |
Canadian Harmonizing Tariff Code | 8708991510 |
Harmonized Tariff Code (Schedule B) | 8708996810 |
Harmonized Tariff Code (HTS) | 8708996810 |
UPC | 00080066606293 |
Part Interchanges
- GMB 40058
- Chicago Rawhide 28279X
- Autopar 5279X
- Autopar 52792X
- TRW Steering and Suspension Parts 20104
- Chicago Rawhide 40279FL
- Autopar 2300279
- SKF 40279FL
- BorgWarner 114-516R
- Neapco OE Series 40279FL
- Spicer 5-279-2X
- Neapco OE Series 4-0058
- Chicago Rawhide 4-0279
- ACDelco 45U2321
- Mcquay-Norris U279
- British Leyland 516
- General Motors 12475327
- British Leyland 279X
- Spicer 5654X
- SKF 4-0279
- BorgWarner 114-516X
- Autopar 40279
- GMB 114516
- Neapco OE Series 28058X
- GMB G5-279X
- TRW Steering and Suspension Parts 20134X
- SKF 28279X
- Neapco OE Series 28279X
- SKF 28058X
- Chicago Rawhide 2-0279
- Spicer DT279
- SKF 2-0279
- GMB 20279
- Chicago Rawhide 4-0058
- Autopar 20279
- Neapco OE Series 2-0279
- GMB 114516R
- GMB 40279
- TRW Steering and Suspension Parts 20134
- Autopar 40058
- Neapco OE Series 4-0279
- Perfect Circle 279
- Autopar G5279X
- BorgWarner 114-516
- GMB 114516X
- SKF 4-0058
- Chicago Rawhide 28058X
- GMB 230-0279
- AUTOPAR A-279X
- Spicer 5-279X
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
