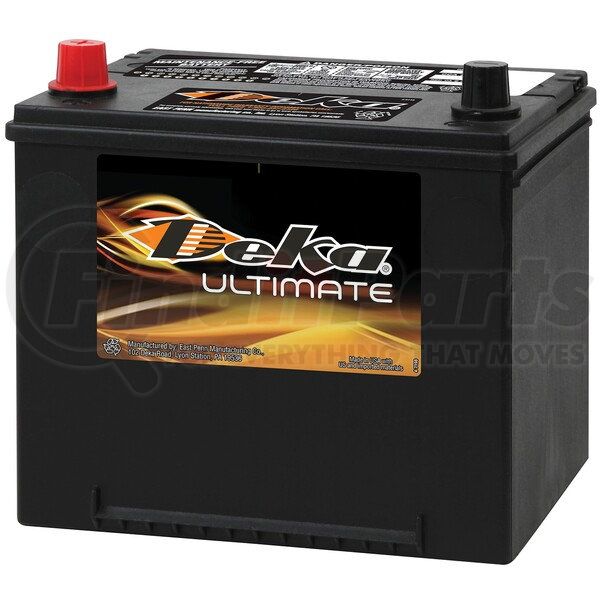

Deka Battery Terminals 786MF - 12 Volt Passenger Car Lt. Truck Van
- Part Number
- 786MF
- Manufacturer
- DEKA BATTERY TERMINALS
- Description
-
12 Volt Passenger Car Lt. Truck Van
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
DEKA BATTERY TERMINALS part description
Product Description
12 Volt Passenger Car Lt. Truck Van
Features & Benefits
- Flush Cover Design enhances overall battery performance, maintenance, safety, and convenience
- Validated by Underwriter's Laboratories (UL) for an allocation of 98 percent recycled material, the highest UL Recycled Content Validation for batteries in the world.
Batteries, car truck suv battery, 12 volt, lead acid, DC power, electrical storage, recyclable, automobile parts, maintenance free
Product Attributes
Battery Electrolyte Composition | Acid |
BCI Group Size | 86 |
CCA at 0 degrees F | 690 |
20 amp hour rate | 60 |
Reserve Capacity | 95 |
CA at 32 degrees F | 850 |
Voltage | 12 |
Polarity | LEFT POSITIVE |
Positive Terminal Location | Top Left |
Battery End Type | Top Post |
Battery Purpose | Starting Lighting Instrumentation |
Length | 9.0000 in |
Width | 6.8750 in |
Height | 8.1250 in |
Weight | 35.000 LBS |
Terminal Type | DIN |
Freight Class | 65 |
Additional Information
Country of Origin (Primary) | US |
Harmonized Tariff Code (HTS) | 8507100000 |
Remanufactured Part | N |
Warranty Special | 30 Month Free Replacement |
Warranty Special UOM | TX |
Warranty Time UOM | MO |
UPC | 00083996079632 |
VMRS Code | 032001001 |
UNSPSC | 26111707 |
Part Interchanges
- AAA 86-C
- Deka 786MF
- Alliance Truck Parts ABP A786MF
- Altrom Auto Group 786MF
- Altrom Group 786MF
- Anderson Battery 86-1
- Astrolite 86-1
- Astrolite 86-72
- Autocraft 86-70
- AutoPride UL-86
- BATTERIES PLUS SLI86M
- Blains Farm & Fleet 86P
- Bosch S4567B
- Canadian Tire Retail ELM86
- Canadian Tire Retail MOT86
- CARQUEST 86-70
- Carquest Canada 786MF
- Delphi BU6086
- Delphi BU7086
- Diehard 4610676
- Diehard 4611278
- DIEHARD 50886
- DIEHARD 86-70
- DURACELL HP86
- Duracell SLI86M
- EVERSTART MAXX-86
- Factory Motor Parts 86-1
- Federated UL-86
- Federated CO-OP 786MF
- Fisher UL-86
- HD Plus 786MF
- Interstate MTP-86
- Mack 1726-M786MF
- Magna Power MPS86
- Mighty 86MX
- MotoMaster MOT86
- MotoMaster OEP86
- NAPA 8486
- NAPA 8486AAA
- NAPA Canada 86-6
- NAPA Export 8486EX
- Parts Master UL-86
- Parts Plus 86G
- Perfect Start 86-690
- PRO-CELL 86-2
- PRO-SERIES MPS86
- Resource Power UL-86
- ROAD RUNNER 8672
- Sams Club 86
- SuperStart 86EXT
- Truck Pride UL-86
- TruckPro DB690-86
- UAP/Napa 8486
- Valvoline 86-V
- Volvo Truck EP V786MF
- AAA 86E-C
- AC Delco 86-5YR
- Deka 586MF
- Alliance Truck Parts ABP A586MF
- Altrom Auto Group 586MF
- Altrom Group 586MF
- Astrolite 86-3
- Autocraft 86-1
- Autocraft 86-60
- Autopart Internaional NWB86-525
- Autopart International NWB86-525
- AutoPride 86-775
- AutoZone 86DL
- BATTERIES PLUS SLI86
- Bosch S3-86
- Bosch S5567B
- CARQUEST 86-60
- Carquest Canada 586MF
- Centenial 86-75
- Delphi BU5086
- DIEHARD 33086
- DIEHARD 86-60
- DURACELL D86
- Monro Duracell P86
- Duracell SLI86
- Factory Motor Parts 86-3
- Federated 86-775
- Federated CO-OP 586MF
- Fisher 86-775
- HD Plus 586MF
- Interstate M-86
- Interstate MT-86
- Komatsu EP586MF
- Mack 1726-M586MF
- Mighty 86P
- NAPA 7586
- NAPA Canada 86-5
- NAPA Canada 8601
- NAPA Export 7586EX
- NAPA HD 86-540
- Parts Master 86-775
- Parts Plus 86S
- PEP BOYS 86-525PS
- Perfect Start 86-540
- Resource Power 86-775
- SuperStart 86PRM
- Truck Pride 86-775
- TruckPro DB540-86
- Volvo Truck EP V586MF
- WORLD SOURCEONE 86MF
Fits Vehicles
- Pontiac G3 Wave (2009)
- Pontiac Wave5 (2005-2007)
- Chrysler 200 (2011-2014)
- Hummer H3T (2009-2010)
- Pontiac G3 (2009-2010)
- Chevrolet Aveo5 (2006-2011)
- Dodge Journey (2009-2020)
- Suzuki Swift+ (2004-2010)
- Isuzu i-370 (2007-2008)
- Isuzu i-290 (2007-2008)
- Jeep Patriot (2007-2017)
- Jeep Compass (2007-2017)
- Saturn Sky (2007-2010)
- Dodge Caliber (2007-2012)
- Pontiac Wave (2005-2008)
- Chevrolet Optra (2004-2007)
- Pontiac Solstice (2006-2009)
- Isuzu i-280 (2006)
- Isuzu i-350 (2006)
- Hummer H3 (2006-2010)
- Suzuki Reno (2005-2008)
- Chevrolet Colorado (2004-2012)
- Suzuki Forenza (2004-2008)
- Saturn Vue (2004-2007)
- GMC Canyon (2004-2012)
- Chevrolet Corvette (2004-2005)
- Chevrolet Aveo (2004-2011)
- Mitsubishi Galant (1999-2012)
- Mitsubishi Diamante (1999-2003)
- Mitsubishi Eclipse (1990-2012)
- Honda Passport (1996)
- Cadillac XLR (2004-2005)
- Plymouth Laser (1990-1994)
- Jeep Liberty (2002)
- Eagle Talon (1990-1998)
- Dodge Stratus (1995-2005)
- Dodge Avenger (1995-2000, 2008-2014)
- Chrysler Sebring (1995-2005, 2007-2010)
- Isuzu Rodeo (1993-1997)
- Kia Sportage (2000-2002)
- Daewoo Nubira (1999-2002)
- Daewoo Leganza (1999-2002)
- Daewoo Lanos (1999-2002)
California Proposition 65 Warning
PROPOSITION 65 WARNING: Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Batteries also contain other chemicals known to the State of California to cause cancer. WASH HANDS AFTER HANDLING. (Read more)
