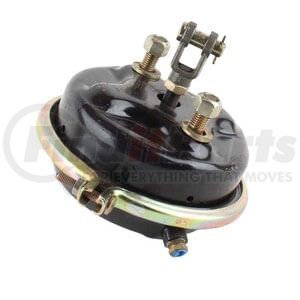

Name: MGM Brakes MJB2024ET758 Air Brake Chamber - Combination, Air Disc Model
SKU: mjb2024et758
Price: 649.49 USD
Availability: InStock

MGM BRAKES part description

General Description

Dry Bulk Chemicals

Features and Benefits

Tamper Resistant Design
Lighter Weight
3 Inch (76.2 mm) Long Stroke
Compact Size
New Patented Integral Release Bolt Mechanism -Minimal Bolt Protrusion (Approx. 1.25 inch (31.8 mm) Protrusion on "Long Stroke" Models When Manually Released)
Non-Coil Clash Power Spring
Increased Corrosion Resistance -Steel Head, Epoxy Coated
Available With 1,922-2,450 Lbs. (871.8 kg-1111.3 kg) of Push-Rod Braking Force @ 1.25 inch (31.8 mm) Stroke/Service Brake Sizes 16-30
Heavy Duty 8 Gauge NPC Standard

Technical Specifications

Stroke	3.00" (76.2 mm)
Weight lb (kg)	20.10 lb (9.1 kg)
A	10.61" (269.5 mm)
B	6.76" (171.7 mm)
C	6.90" (175.3 mm)
D	4.75" (120.7 mm)
E	M16 x 1.5 - 6g
Inlets	3/8" - 18 NPTF (M16 x 1.5 -6H)
XB	15mm

Product Description

Air Disc - Piston Brake Chamber

Features & Benefits

Tamper Resistant Design
Light Weight
Compact
Integral Release Bolt
Non-Coil Clash Power Spring
Steel Head, Epoxy Coated
Available with 1,922 - 2,450 lbs. of Push-Rod Braking Force @ 1.25 inch Stroke/Service Brake Sizes 16-30

Product Attributes

Breather Tube	Breather Tube
Chamber Type	Air Disc - Piston Brake
Diaphragm Diameter	Rubber IN
Mounting Bolt Length	1.660 IN
Mounting Bolt Thread	M16 X 1.5
Port Size	3/8-18 NPTF
Spring Size	24
Service Size	20
Stroke	3.00 IN
UNIT	Production

Additional Information

Country of Origin (Primary)	US
	2
VMRS Code	013013000

California Proposition 65 Warning

WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
