PETERSON LIGHTING part description

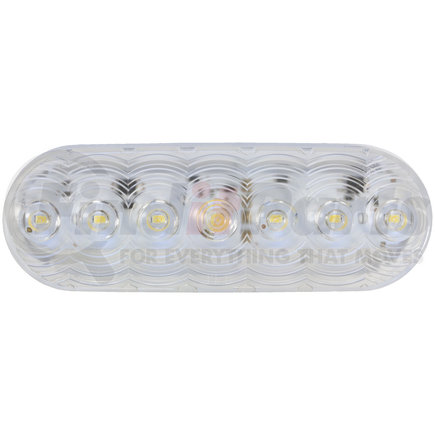

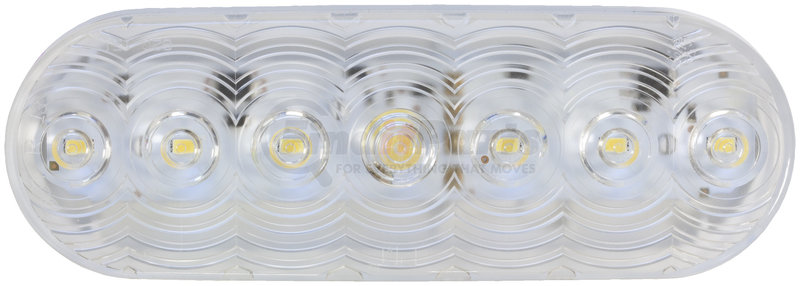

820C-7/823C-7 LumenX® Oval LED Back-Up Light, AMP

Features & Benefits

  • 7-diode, oval LED clear back-up light
  • A single light meets FMVSS 108 requirements when properly mounted
  • AMP-compatible Piranha® connector integrated into housing
  • 9–16 volt operating range
  • Regulated design provides voltage protection and consistent light output over entire voltage range
  • Meets FMVSS 108 requirements in horizontal, vertical or any 360° position
  • 820 kit includes light, grommet & 817-48 plug
  • 823 kit includes light & 817-48 plug

Product Description

LED BACK-UP LIGHT, OVAL, AMP, GROMMET-MOUNT, 6.5"X2.25"

Features & Benefits

  • 7 diodes.
  • Defender harness & lighting system approved.
  • Lumenx® lens and circuitry.
  • Made in USA.
  • Voltage Regulated.
  • A single light meets FMVSS 108 requirements when properly mounted.
  • AMP-compatible connector integrated into housing.
  • 823-7 has flange welded to light, forming a single unit.
  • 9–16 volt operating range.
  • 823CTL-7 version has integral narrower flange with recessed lens and two mounting holes positioned at ends for narrower rail applications.
  • Regulated design provides voltage protection and consistent light output over a wide voltage range.
  • Meets FMVSS 108 requirements in horizontal, vertical or any 360° position.
  • 820 kit includes light, grommet and 817-48 plug.
  • 823 kit includes light and 817-48 plug.

421-18: grommet (poly pack - std qty 12)

Product Attributes

Bulb Technology LED
Bulb/diode Count 7
California Proposition 65 Required Y
Container Type poly bag
Family LumenX
Height 2.31 in
Length 6.5 in
Lens Color clear
Light Color white
Marine Use Y
Maximum Voltage 16 Volts
Minimum Voltage 9 Volts
Mounting Type grommet
Multi-volt N
Regulatory Compliance DOT
Shape oval
Termination AMP
Voltage 12 Volts
Width 1.45 in

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8512204000
UPC 00044464993225
VMRS Code 034003142

Part Interchanges

PETERSON LIGHTING 820C-7 Cross Reference

We have 1 alternatives for the 820C-7 by PETERSON LIGHTING:

Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
