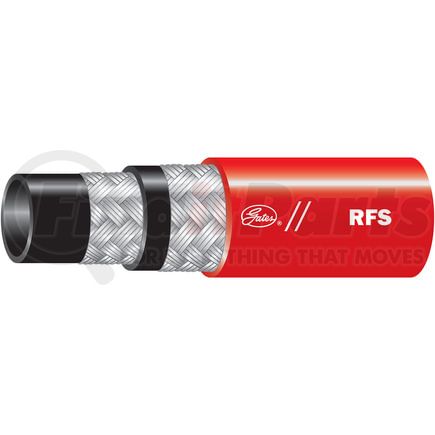

(888) 312-8812 Login SignupGATES H24100-03F 440 ft. RFS Red Fire Suppressant Hydraulic Hose, 3/16" ID x 0.45" OD, 3000 psi Max WP
$5.16
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
GATES H24100-03F Part Description
Manufacturer
Product Description
RFS Red Fire Suppressant Hose
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series] and Power Crimp Couplings
- The red cover is for easy visual identification in these applications
- Meets performance requirements of SAE 100R1 and meets Flame Resistance Acceptance Designation MSHA 2G
- Temperature Range: -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C)
GATES H24100-03F Specifications
Product Attributes
| Product Type | RFS Red Fire Suppressant Hose |
| Industrial Description | 3RFSXREEL |
| Type | Hydraulic Hose |
| Hose Pressure Description | Low Pressure |
| Maximum Working Pressure | 3000 PS |
| Burst Pressure | 12000 PS |
| Temperature Rating | -40 Deg. F to +212 Deg. F (-40 Deg. C to +100 Deg. C) |
| Length | 440 FT |
| Dash Size | 3 |
| Inside Diameter | .1875 IN |
| Outside Diameter | .45 IN |
| Bend Radius | 3 IN |
| Tube Description | Black, Oil-Resistant, Synthetic Rubber |
| Hose Material | Nitrile - Type C |
| Reinforcement Material | One Braid, High-Tensile Steel Wire |
| Cover Material | Modified Nitrile - Type C2 |
| Cover Type | Type C2 - Flame, Oil & Abrasion Resistant |
| Cover Color | Red |
| Coupling Recommendation | Power Crimp |
| SAE Standard | 100R1 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009210000 |
| Country of Origin (Primary) | US |
| Stock Status | S |
| UPC | 00770075167259 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES H24100-03F Cross References
| Brand | Part Number |
|---|---|
| N/A | 04030127 |
| NAPA | H24100-03F |
