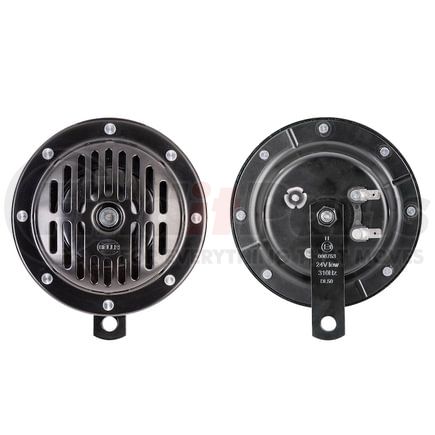

HELLA 004811021 - Supertone Low-Tone, 24 V, 310 Hz with Bracket
$12449
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
HELLA part description
Product Description
Supertone Low-Tone, 24 V, 310 Hz with Bracket
Features & Benefits
- With moisture protection
Product Attributes
| Sound Level [dB(A)] | 114 |
| Voltage [V] | 24 |
| Housing Colour | Black |
| Assy./disassy. By Qualified Personnel Required! | . |
| Power Consumption [w] | 84 |
| Frequency Range [hz] | 310 |
| Measurements [cm] | 6.1 x 14.3 |
| Temperature Range From [°c] | -40 |
| Frequency Range From [hz] | 310 |
| Test Mark | ECE-R28 |
| Bracket | M10 mounting screw |
| Temperature Range To [°c] | 90 |
| Diameter [cm] | 13 |
| Single Includes | (1) Low-Tone or High-Tone Disc Horn, Mounting Brackets, Step-by-Step Mounting Instructions |
| Protection | IP54 |
| Mounting Type | With 6.3 mm blade terminal contacts, open |
| Homologation | ECE-R28 |
| Diameter [in] | 5.11 |
Additional Information
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8512300020 |
| UPC | 04082300013931 |
Part Interchanges
HELLA 004811021 Cross Reference
We have 2 alternatives for the 004811021 by HELLA:
