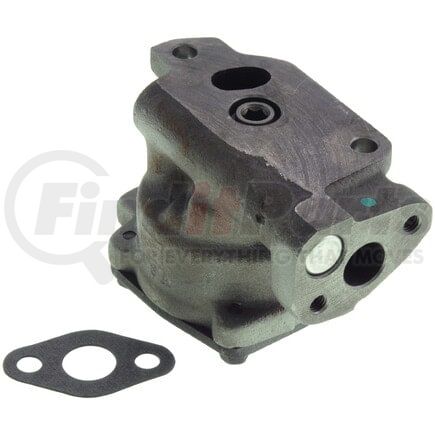

MELLING ENGINE PRODUCTS M-86C Part Description
Manufacturer
Product Description
Stock Replacement Oil Pump
Features & Benefits
- Precision engineered for optimum fit and function
- Manufactured from high quality materials for consistent durable wear
- Melling oil pumps are tested for pressure and flow under operating conditions to ensure quality
- Designed for long-life and worry-free performance
- Meets or exceeds original equipment specifications
MELLING ENGINE PRODUCTS M-86C Specifications
Product Attributes
| Title | Engine Oil Pump |
| Width | 4.875 IN |
| Width | 124.0 MM |
| Height | 3.0 IN |
| Height | 76.0 MM |
| Grade Type | Standard Replacement |
| Gasket Or Seal Included | No |
| Mounting Hole Quantity | 2 |
| Housing Material | Cast Iron |
| Oil Pump Type | Gear |
| Mounting Hole Diameter | 0.375 IN |
| Mounting Hole Diameter | 10.0 MM |
| Adjustable Bypass Pressure | No |
| Alternate Pressure Springs Included | No |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | Standard Volume |
| Inlet Size (mm) | 14.00 |
| Spacer Included | No |
| Gears Included | Yes |
| Pickup Screen Included | No |
| Intermediate Shaft Included | No |
| Inlet Size (in) | 0.550 |
| Cover Material | Cast Iron |
| Bolts Included | No |
| Bushing Included | No |
| Cotter Pin Included | No |
| Finish | Rust Preventative |
| Governor Spinner Included | No |
| Guide Included | No |
| Nylon Bushing Included | No |
| O-Ring Included | No |
| Pump Cover Included | Yes |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| Washers Included | No |
| Pickup Tube Diameter | 0.550 IN |
| Pickup Tube Diameter | 14.00 MM |
| Gear Material | Steel |
| Drive Type | Drive Shaft |
| Drive Shaft Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 8413309060 |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| UPC | 00729295101574 |
MELLING ENGINE PRODUCTS M-86C Cross References
| Brand | Part Number |
|---|---|
| Avon Automotive | A-86C |
| Badger | 41-160U, B-86C |
| Balkamp | 601-1122 |
| Beck/Arnley | 028-0253 |
| Dynagear | DM-86C |
| Elgin | EM-86C |
| Enginetech | EP86C |
| Federated | DM-86C |
| Fleet-Tuf | OP241 |
| Ford | D4FZ-6600-A, D5FZ-6600-A |
| General Chain | OP521 |
| Hoof | HM86C |
| ITM Engine Components | 057-660 |
| MAHLE | 601-1122 |
| MELLING ENGINE PRODUCTS | M-86C |
| Melling | M-86C |
| Muskegon | MM-86-C |
| N/A | N/A |
| Perfect Circle | 601-1122, P86C |
| Pioneer | OP-86-C |
| Safety Auto Parts Corp | N/A |
| Sealed Power | 224-41160 |
| TRW | 50120 |
| Topline | N/A |
| Vera | 47-00381 |
| Wolverine/Blue Racer | OP-539 |
| Worldparts | W24-155 |
MELLING ENGINE PRODUCTS M-86C Fits Vehicles
- Mercury Zephyr (1978-1983)
- Mercury Marquis (1983-1985)
- Mercury Cougar (1981-1982)
- Mercury Capri (1975-1977, 1979-1985)
- Mercury Bobcat (1975-1980)
- Ford Ranger (1983-1988)
- Ford Pinto (1974-1980)
- Ford Mustang II (1974-1978)
- Ford Mustang (1979-1985)
- Ford LTD (1983-1985)
- Ford Granada (1981-1982)
- Ford Fairmont (1978-1983)
- Ford Courier (1977-1982)
