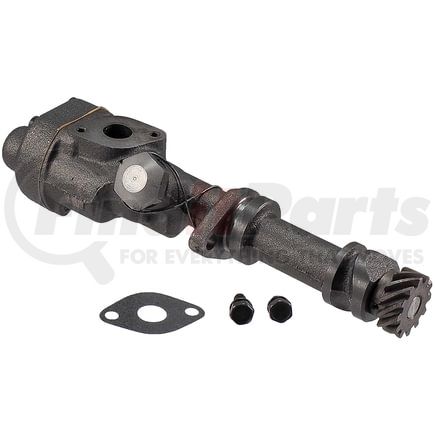

(888) 312-8812 Login SignupMELLING ENGINE PRODUCTS M-15 M-15 Stock Replacement : High Volume, Standard Pressure, Cast Iron Oil Pump With Gasket
Tap to view 5 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MELLING ENGINE PRODUCTS M-15 Part Description
MELLING ENGINE PRODUCTS M-15 Specifications
Product Attributes
| Title | Engine Oil Pump |
| Width | 2.49 IN |
| Width | 63.0 MM |
| Height | 9.6 IN |
| Height | 244.0 MM |
| Grade Type | Standard Replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 1 |
| Housing Material | Cast Iron |
| Drive Type | Crankshaft |
| Oil Pump Type | Rotary |
| Pickup Screen Diameter | 0.63 IN |
| Pickup Screen Diameter | 16.0 MM |
| Mounting Hole Diameter | 0.375 IN |
| Mounting Hole Diameter | 10.0 MM |
| Oil Pump Pressure Type | Standard Pressure |
| Oil Pump Volume Type | High Volume |
| Additional Volume Over Stock Percentage | 25% |
| Pickup Screen Included | No |
| Intermediate Shaft Included | No |
| Inlet Size (in) | 0.630 |
| Inlet Size (mm) | 16.00 |
| Cover Material | Cast Iron |
| Bolts Included | Yes |
| Bushing Included | No |
| Cotter Pin Included | No |
| Governor Spinner Included | No |
| Guide Included | No |
| Nylon Bushing Included | No |
| O-Ring Included | No |
| Pump Cover Included | Yes |
| Shaft Material | Not Applicable |
| Timing Cover Included | No |
| Washers Included | No |
| Spacer Included | No |
| Gears Included | Yes |
| Finish | Rust Preventative |
| Gear Material | Steel |
| Pickup Tube Diameter | 0.630 IN |
| Pickup Tube Diameter | 16.00 MM |
| Adjustable Bypass Pressure | No |
| Alternate Pressure Springs Included | No |
| Drive Shaft Included | No |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8413309060 |
| UPC | 00729295102663 |
MELLING ENGINE PRODUCTS M-15 Cross References
| Brand | Part Number |
|---|---|
| Elgin | EM-15 |
| Enginetech | N/A |
| ITM Engine Components | N/A |
| MAHLE | N/A |
| MELLING ENGINE PRODUCTS | M-15 |
| Melling | M-15 |
| N/A | N/A |
| Safety Auto Parts Corp | N/A |
| Sealed Power | N/A |
| Topline | N/A |
MELLING ENGINE PRODUCTS M-15 Fits Vehicles
- Ford F-350 (1953)
- Ford F-250 (1953)
- Ford F-100 (1953)
- Mercury Custom (1952-1953)
- Ford Courier Sedan Delivery (1952-1953)
- Ford Custom (1949-1952)
- Ford F4 (1948-1952)
- Ford F-3 (1948-1952)
- Ford F-2 (1948-1952)
- Ford F-1 (1948-1952)
- Ford Super Deluxe (1946-1948)
- Ford Sedan Delivery (1942, 1946-1947)
- Ford 3/4 Ton Pickup (1942, 1946-1947)
- Ford 1/2 Ton Pickup (1942, 1946-1947)
- Ford 1 Ton Pickup (1942, 1946-1947)
- Mercury Series 29A (1942)
- Mercury Monterey (1950-1953)
- Mercury Mercury (1946-1952)
- Ford Victoria (1951-1953)
- Ford Sunliner (1952-1953)
- Ford Ranch Wagon (1950-1953)
- Ford Mainline (1952-1953)
- Ford Ford (1949)
- Ford Deluxe (1946-1951)
- Ford Customline (1952-1953)
- Ford Crestline (1950-1953)
- Ford Country Squire (1950-1953)
- Ford Country Sedan (1950-1953)
- Ford Club (1953)
