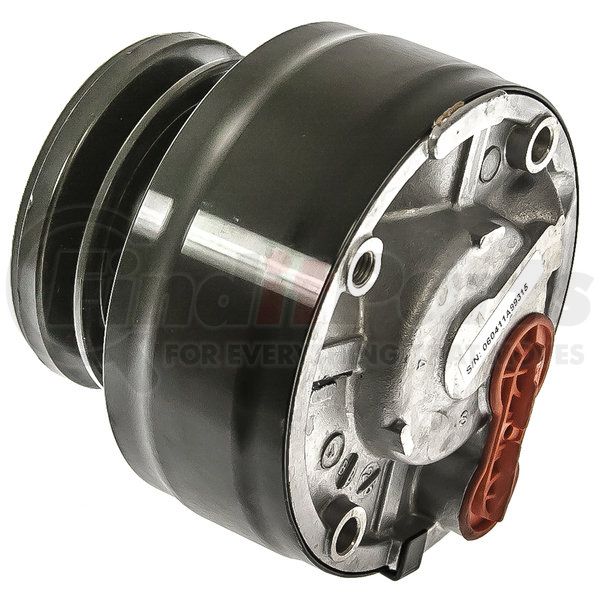

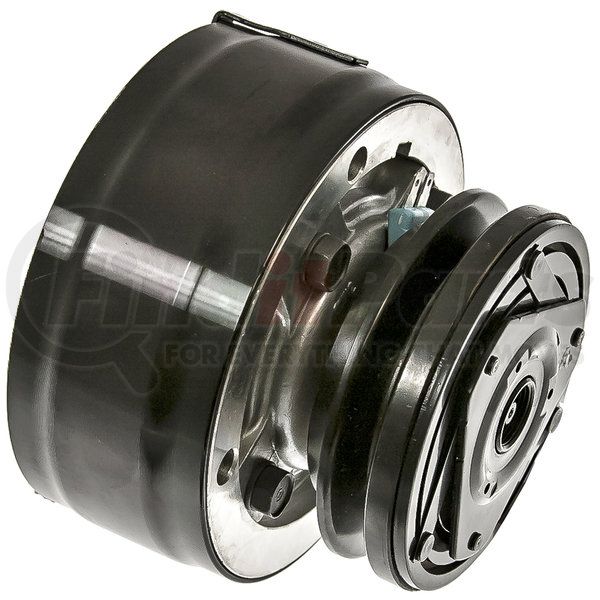

OMEGA ENVIRONMENTAL TECHNOLOGIES 20-10436-AM - A/C Compressor
- Part Number
- 20-10436-AM
- Manufacturer
- OMEGA ENVIRONMENTAL TECHNOLOGIES
- Description
-
A/C Compressor
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
OMEGA ENVIRONMENTAL TECHNOLOGIES part description
General Description
A/C Compressor
Features and Benefits
- Omega-Santech Compressors are manufactured from the highest quality material to meet or exceed OEM performance.
- Long Life
- Precision fit
- Drop in Replacement
Technical Spefications
| Compressor Model | R4 |
| OEM | 12321635 |
| Aftermarket Num | 15-20226 |
| Voltage | 12 |
| Grooves | 1 |
| Clutch Diameter | 125mm |
| Coil Pos | 9 |
| Compressor Mount | DIRECT |
| Compressor Fitting | PAD |
| Oil Type | PAG 150 |
| Oil Oz. | 8 |
Product Description
COMP R4 1GR 4.93in 12V 9:00 METRIC THR W/HPS
Features & Benefits
- Meets or Exceeds OE Specifications
- Durability tested for realibility under extreme conditions
- Designed for improved performance
- Direct OE Replacement
compressor,hvac compressor,air conditioning compressor,
Product Attributes
| Pulley Groove Quantity | 1 |
| Outside Pulley Diameter | 125.0 MM |
| Clutch Included | Yes |
| Compressor Type | R4 |
| Pulley Belt Type | V-Belt |
| Belt Width IN | 0.500 |
| Mounting Hardware? | Not Included |
| Pulley Diameter Mm | 130.18 |
| Suction Port Type | O-Ring / Sealing Washer |
| Type | GM |
Additional Information
| Country of Origin (Primary) | KR |
| Harmonized Tariff Code (Schedule B) | 8414308030 |
| Harmonized Tariff Code (HTS) | 8414308030 |
| UPC | 00887270272364 |
Part Interchanges
Fits Vehicles
- Chevrolet C15 (1985)
- Chevrolet Suburban (1987-1988, 1990-1991)
- Chevrolet C35 (1985-1986)
- Chrysler Daytona (1992-1993)
- Pontiac Grand Prix (1985)
- Pontiac Firebird (1985)
- GMC V3500 (1987-1988, 1990-1991)
- GMC V2500 Suburban (1987-1988, 1990-1991)
- GMC V2500 (1987)
- GMC V1500 Suburban (1987-1988, 1990-1991)
- GMC V1500 (1987)
- GMC Safari (1985-1986)
- GMC S15 (1985)
- GMC R3500 (1987-1991)
- GMC R2500 Suburban (1987-1988, 1990-1991)
- GMC R2500 (1987-1989)
- GMC R1500 Suburban (1987-1988, 1990-1991)
- GMC R1500 (1987)
- GMC K3500 (1985-1986)
- GMC K2500 Suburban (1982-1983)
- GMC K2500 (1985-1986)
- GMC K1500 Suburban (1982-1983)
- GMC K1500 (1985-1986)
- GMC Jimmy (1985-1988)
- GMC G3500 (1985-1986)
- GMC G2500 (1985-1986)
- GMC G1500 (1985-1986)
- GMC Caballero (1985)
- GMC C3500 (1985-1986)
- GMC C2500 Suburban (1982-1983, 1986)
- GMC C2500 (1985-1986)
- GMC C1500 Suburban (1982-1983)
- GMC C1500 (1985-1986)
- Chevrolet V3500 (1989-1991)
- Chevrolet V30 (1987-1988)
- Chevrolet V2500 Suburban (1990-1991)
- Chevrolet V20 Suburban (1987-1988)
- Chevrolet V20 (1987)
- Chevrolet V1500 Suburban (1990-1991)
- Chevrolet V10 Suburban (1987-1988)
- Chevrolet V10 (1987)
- Chevrolet R3500 (1990-1991)
- Chevrolet R30 (1987-1988)
- Chevrolet R2500 Suburban (1990-1991)
- Chevrolet R20 Suburban (1987-1988)
- Chevrolet R20 (1987-1988)
- Chevrolet R1500 Suburban (1990-1991)
- Chevrolet R10 Suburban (1987-1988)
- Chevrolet R10 (1987)
- Chevrolet Monte Carlo (1985)
- Chevrolet K30 (1985-1986)
- Chevrolet K20 Suburban (1982-1983)
- Chevrolet K20 (1985-1986)
- Chevrolet K10 Suburban (1982-1983)
- Chevrolet K10 (1985-1986)
- Chevrolet Impala (1984-1985)
- Chevrolet G30 (1985-1986)
- Chevrolet G20 (1985-1986)
- Chevrolet G10 (1985-1986)
- Chevrolet El Camino (1985)
- Chevrolet Caprice (1984-1985)
- Chevrolet C30 (1985-1986)
- Chevrolet C20 Suburban (1982-1983, 1986)
- Chevrolet C20 (1985-1986)
- Chevrolet C10 Suburban (1982-1983)
- Chevrolet C10 (1985-1986)
- Chevrolet K5 Blazer (1985-1986)
- Chevrolet Blazer (1987-1988)
- Chevrolet Astro (1985-1986)
- Buick Skylark (1985)
- Dodge Spirit (1992)
- Dodge Daytona (1992-1993)
- Chrysler TC Maserati (1989-1990)
Omega Environmental Technologies® is a U.S. distributor of aftermarket air conditioning products for automotive trucks, buses, tractors, and other automotive applications. Offering a one-stop-shop for A/C systems for light to heavy duty vehicles, Omega maintains more than 600 products in their inventory, including OE-compatible compressors, evaporators, and other related components for Volkswagen, Toyota, Nissan, Chrysler, and Ford to name a few. They also offer A/C compressors for off-road vehicles and equipment. The company maintains ISO 9001:2015-certified facilities with in-house test labs to ensure their products meet international safety and environmental standards and has several patents for compressors and small parts kits.
