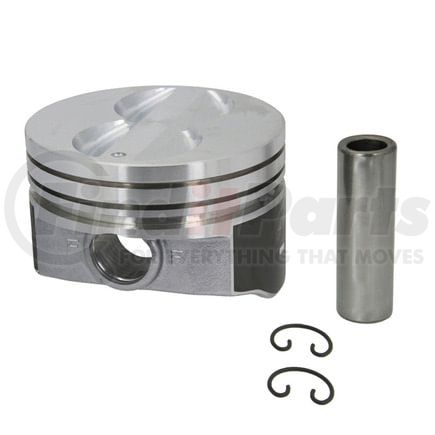

Sealed Power H345DCP 60 - Engine Piston - Hypereutectic Aluminum, Flat Top, with 4 Valve Relief (Set of 8)
- Part Number
- H345DCP 60
- Manufacturer
- SEALED POWER
- Description
-
Engine Piston - Hypereutectic Aluminum, Flat Top, with 4 Valve Relief (Set of 8)
details
$25192
Package Price for 8 Units
@ $31.49 per unit
In stock
limited availability at this price!
Pay over 3-12 months with . Learn more
SEALED POWER part description
Product Description
Engine Piston - Hypereutectic Aluminum, Flat Top, with 4 Valve Relief (Set of 8)
Features & Benefits
- Hypereutectic
- Made w/exclusive FM425 material for excellent strength & scuff resistance - allows tighter bore and improves sealing for less blow-by
- Sophisticated "barrel" profiles help optimize oil wedge between skirt and wall.
- Piston skirts protected by next-gen DUROSHIELD(R) coating.
- Piston skirts protected by next-gen DUROSHIELD® coating.
- TACTM ring groove geometry
- Weight matched to +/- 2 grams.
Product Attributes
Oversized | Yes |
Top Compression Ring Thickness | 0.0781 IN |
Second Compression Ring Thickness | 0.0781 IN |
Oil Ring Thickness | 0.1875 IN |
Piston Pin Outside Diameter | 0.927 IN |
Assembly Lubricant Included | No |
Bore Diameter | 4.060 IN |
Piston Material | Hypereutectic |
9607 | 1.548 IN |
Dome Volume CC | Negative 6.9 |
Head Illustration | 183 |
Head Type | Flat, 4 reliefs; Use w/Lock Ring LR-63; DUROSHIELD~ skirt coated piston |
Lock Ring | Not Incl. |
Minimum Clearance | 0.0010 |
Oversized Amount | 0.060 IN |
Part Description | Engine Piston |
Pin Type | F |
Pin Weight Gram | 149 |
Weight W Pin Gram | 708 |
Weight w/o Pin Gram | 559 |
Grade Type | Premium |
Additional Information
Country of Origin (Primary) | IN |
Canadian Harmonizing Tariff Code | 8409910010 |
Harmonized Tariff Code (Schedule B) | 8409915085 |
Harmonized Tariff Code (HTS) | 8409915085 |
UPC | 00019826500748 |
Part Interchanges
Fits Vehicles
- Chevrolet K30 Pickup (1969-1970)
- Pontiac Firebird (1987-1990)
- Chevrolet Townsman (1969-1970)
- Chevrolet P30 Van (1970)
- Chevrolet P20 Van (1970)
- Chevrolet Monte Carlo (1970)
- Chevrolet Kingswood (1969-1970)
- Chevrolet K20 Suburban (1969-1970)
- Chevrolet K20 Pickup (1969-1970)
- Chevrolet K10 Suburban (1969-1970)
- Chevrolet K10 Pickup (1969-1970)
- Chevrolet G20 Van (1970)
- Chevrolet G10 Van (1970)
- Chevrolet El Camino (1969-1970)
- Chevrolet Chevy II (1968)
- Chevrolet Chevelle (1968-1970)
- Chevrolet C30 Pickup (1969-1970)
- Chevrolet C20 Suburban (1969-1970)
- Chevrolet C20 Pickup (1969-1970)
- Chevrolet C10 Suburban (1969-1970)
- Chevrolet C10 Pickup (1969-1970)
- Chevrolet Brookwood (1969-1970)
- Chevrolet Blazer (1969-1970)
- Chevrolet Biscayne (1969-1970)
- Chevrolet Bel Air (1969-1970)
- GMC G35/G3500 Van (1970)
- Pontiac Strato-Chief (1969-1970)
- Pontiac Parisienne (1969-1970)
- Pontiac Laurentian (1969-1970)
- Chevrolet Estate (1969-1970)
- Pontiac Beaumont (1968-1969)
- Chevrolet Nova (1969-1970)
- Chevrolet G30 Van (1970)
- Pontiac Acadian (1968-1970)
- GMC P35/P3500 Van (1970)
- GMC P25/P2500 Van (1970)
- GMC K35/K3500 Pickup (1969-1970)
- GMC K25/K2500 Suburban (1969-1970)
- GMC K25/K2500 Pickup (1969-1970)
- GMC K15/K1500 Suburban (1969-1970)
- GMC K15/K1500 Pickup (1969-1970)
- GMC Jimmy (1970)
- GMC G25/G2500 Van (1970)
- GMC C35/C3500 Pickup (1969-1970)
- GMC C25/C2500 Suburban (1969-1970)
- GMC C25/C2500 Pickup (1969-1970)
- GMC C15/C1500 Suburban (1969-1970)
- GMC C15/C1500 Pickup (1969-1970)
- Chevrolet Impala (1969-1970, 1982-1985)
- Chevrolet Corvette (1982, 1984-1990)
- Chevrolet Caprice (1969-1970, 1985-1990)
- Chevrolet Camaro (1967-1970, 1987-1990)
- Cadillac Brougham (1990)
