GATES 26230 Part Description
Manufacturer
Product Description

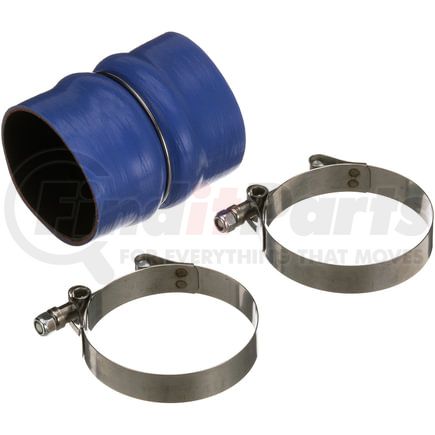

Molded Turbocharger Hose Kit
Application Summary
2006-1996 Dodge, Ram Series Pickup, 6-Cyl. 5.9 L Diesel, Pipe To Engine (Cold Side)
Features & Benefits
- High-quality silicone cover provides extreme temperature resistance in high-temperature under-hood conditions
- Increased durability due to multiple layers of reinforcement, resulting in longer service life
- Specially formulated oil-resistant Fluorelastomer liner prevents damage
- T-bolt clamps with stainless steel band and bridge both resist corrosion and provide higher torque for optimal sealing
GATES 26230 Specifications
Product Attributes
| Grade Type | OE Improved |
| Contents | 1 Turbocharger Hose, 2 T-Bolt Clamps |
| Centerline Length | 4.02 IN |
| End 1 Inside Diameter | 3 in |
| End 2 Inside Diameter | 3 in |
| Minimum Clamping Length | 3.13 IN |
| Maximum Clamping Length | 3.44 IN |
| Clamp Band Width | .75 IN |
| Bolt Type | .25 in. - 28 T-Bolt |
| Nut Type | .4375 in. Hex-Head w/ Nylon Insert |
| Recommended Torque | 75 PPI |
| Ring Quantity | 1 |
| Centerline Length | 102 MM |
| End 1 Inside Diameter | 76 MM |
| End 2 Inside Diameter | 76 MM |
| Minimum Clamping Length | 79.5 MM |
| Maximum Clamping Length | 87.4 MM |
| Clamp Band Width | 19.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | US |
| UPC | 00770075604808 |
| VMRS Code | 041003014 |
| UNSPSC | 40142000 |
GATES 26230 Part Interchanges
| Brand | Part Number |
|---|---|
| ACDelco | 26230 |
| Carquest | 26230 |
| Chrysler | 5086568AA, 52028570, 52028895AA, 52028895AB, 52028895AC, 52028895AD, 55056539AA, 55056564AA, 55056566AA, 55056696AE, 52028895AE, 55056538AB, 55056695AB, 55056538AC, 55056695AC, 55056720AB |
| NAPA Belts/Hose | 26230 |
| Continental Belt | 65424 |
GATES 26230 Fits Vehicles
- Blue Bird Vision School Bus (2007-2008)
- Blue Bird All American RE (2008)
- Blue Bird All American FE (2007-2008)
- Sterling Truck Bullet 55 (2008-2009)
- Sterling Truck Bullet 45 (2008-2009)
- Dodge Ram 4500 (2008-2009)
- Dodge Ram 5500 (2008-2009)
- Dodge Ram 3500 (1996-1998, 2003-2009)
- Dodge Ram 2500 (1996-1998, 2003-2009)
