(888) 312-8812 Login SignupGATES 26224 Molded Turbocharger Hose Kit
MSRP: $126.19
$12399
Save $2.20
Limited availability at this price!
In Stock
Get it by Wednesday, Jan 14
GATES 26224 Part Description
Manufacturer
Product Description

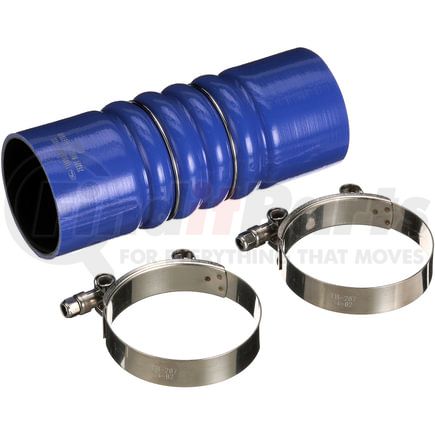

Molded Turbocharger Hose Kit
Application Summary
2009-05 Dodge, Ram Series Pickup, 6-Cyl. 5.9 L Diesel, Turbo To Pipe (Hot Side)
Features & Benefits
- High-quality silicone cover provides extreme temperature resistance in high-temperature under-hood conditions
- Increased durability due to multiple layers of reinforcement, resulting in longer service life
- Specially formulated oil-resistant Fluorelastomer liner prevents damage
- T-bolt clamps with stainless steel band and bridge both resist corrosion and provide higher torque for optimal sealing
GATES 26224 Specifications
Product Attributes
| Grade Type | OE Improved |
| Contents | 1 Turbocharger Hose, 2 T-Bolt Clamps |
| Centerline Length | 7.44 IN |
| End 1 Inside Diameter | 2.72 in |
| End 2 Inside Diameter | 2.72 in |
| Minimum Clamping Length | 2.88 IN |
| Maximum Clamping Length | 3.19 IN |
| Clamp Band Width | .75 IN |
| Bolt Type | .25 in. - 28 T-Bolt |
| Nut Type | .4375 in. Hex-Head w/ Nylon Insert |
| Recommended Torque | 75 PPI |
| Ring Quantity | 2 |
| Centerline Length | 189 MM |
| End 1 Inside Diameter | 69 MM |
| End 2 Inside Diameter | 69 MM |
| Minimum Clamping Length | 73.2 MM |
| Maximum Clamping Length | 81 MM |
| Clamp Band Width | 19.1 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| Country of Origin (Primary) | US |
| UPC | 00770075604792 |
| VMRS Code | 041003014 |
| UNSPSC | 40142000 |
GATES 26224 Part Interchanges
| Brand | Part Number |
|---|---|
| ACDelco | 26224 |
| Carquest | 26224 |
| Chrysler | 55056538AB, 55056538AC, 55056720AB |
| General Motors | 15849822, 25836156 |
| NAPA Belts/Hose | 26224 |
GATES 26224 Fits Vehicles
- GMC Savana 2500 (2006-2016)
- Sterling Truck Bullet 55 (2008-2009)
- GMC Savana 3500 (2006-2016)
- Sterling Truck Bullet 45 (2008-2009)
- Chevrolet Express 4500 (2009-2016)
- Chevrolet Express 3500 (2007-2016)
- Chevrolet Express 2500 (2007-2016)
- GMC Savana 4500 (2009-2016)
- Dodge Ram 5500 (2008-2009)
- Dodge Ram 4500 (2008-2009)
- Dodge Ram 3500 (2003-2009)
- Dodge Ram 2500 (2003-2009)
