DAYCO part description

Product Description

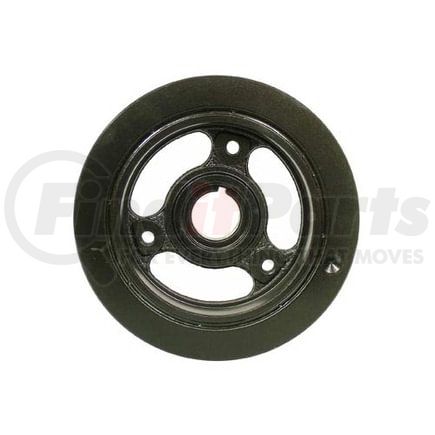

STREET PERFORMANCE BALANCER, POWERBOND

Product Attributes

Overall Outside Diameter 7.008 in
Overall Outside Diameter 178.00 mm
Crank Bore 1.249 in
Crank Bore 31.71 mm
Overall Width 2.306 in
Overall Width 58.55 mm
Nose Outside Diameter 1.876 in
Nose Outside Diameter 47.65 mm
Ring Width 1.830 in
Ring Width 46.48 mm
Bolt Hole Quantity 3
Crank Trigger/Exciter Plate No
Woodruff Key Included No
Hardware Included No
Counterweight Balance Neutral, no counterweight
Timing Marks Yes
Installation Instructions Included No
Number of Integrated Pulleys 1
Pulley 1 Type Serpentine
Pulley 1 Outside Diameter 6.646 in
Pulley 1 Outside Diameter 168.800 mm
Pulley 1 Number Of Grooves 6 mm
Outer Ring Material Cast Iron

Additional Information

Country of Origin (Primary) AU
Harmonized Tariff Code (Schedule B) 8483509080
UPC 09317010811160

Part Interchanges

Fits Vehicles

  • Ford E-450 Super Duty (2007-2016)
  • Ford E-350 Super Duty (2007-2016)
  • Ford E-250 (2007-2014)
  • Ford E-150 (2007-2014)
  • Lincoln Mark LT (2006-2008)
  • Ford F-250 Super Duty (2005-2010)
  • Ford F-350 Super Duty (2005-2010)
  • Ford Expedition (2005-2014)
  • Ford F-150 Heritage (2004)
  • Lincoln Navigator (2001-2014)
  • Lincoln Blackwood (2002)
  • Ford Mustang (1999-2000)
  • Ford F-150 (2002-2010)
