SEALED POWER 609P40 Part Description
Manufacturer
Product Description

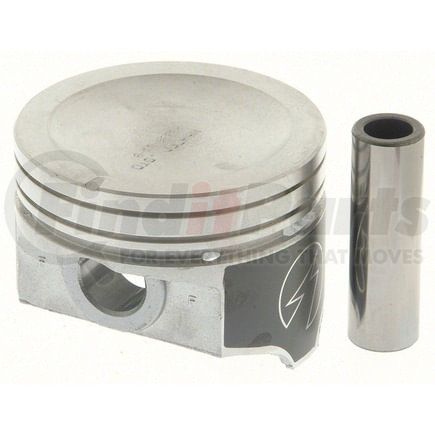

Engine Piston Set
Features & Benefits
- Cast with FM132 Eutectic proprietary alloy
- Performance & dependability of original equipment pistons
- High quality aluminum
- Utilizes ISO & QS certified manufacturing
- Meets or exceeds OEM specifications
SEALED POWER 609P40 Specifications
Product Attributes
| Oversized | Yes |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.9999 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 4.3000 IN |
| Piston Material | Cast Aluminum |
| Compression Height | 1.882 IN |
| Head Illustration | 28 |
| Head Type | Recessed Head .110 deep x 2.500 dia. |
| Minimum Clearance | 0.001 @ 1.900 from top of head |
| Oversized Amount | 0.040 IN |
| Part Description | Engine Piston |
| Pin Offset (Inch) | 0.06 |
| Pin Offset (MM) | 1.524 |
| Bore Diameter | 109.2 MM |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 25.397 MM |
| Grade Type | Premium |
| Piston Head Type | Recessed |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00724956364930 |
SEALED POWER 609P40 Cross References
| Brand | Part Number |
|---|---|
| Enginetech | P6011(8)040 |
| MAHLE | 224-2035.040 |
| TRW Steering and Suspension Parts | L1313F40 |
SEALED POWER 609P40 Fits Vehicles
- Cadillac Fleetwood (1975-1976)
- Cadillac Eldorado (1974-1976)
- Cadillac DeVille (1975-1976)
- Cadillac Commercial Chassis (1975-1976)
- Cadillac Calais (1975-1976)
