SEALED POWER H559P Part Description
Manufacturer
Product Description

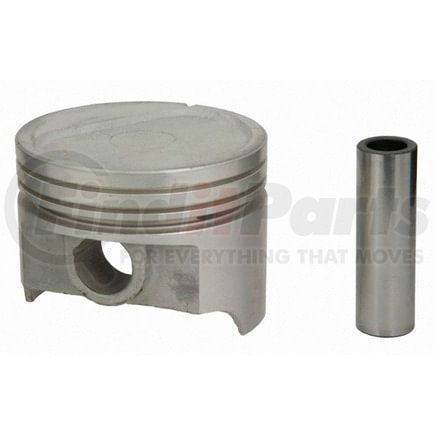

Engine Piston
Application Summary
1989-1983 FO L4 2302cc 2.3L
Features & Benefits
- Hypereutectic
- Made of high strength alloy & silicon
- Higher strength than cast
- Designed to retain standard ring gaps in top groove
- Utilizes ISO & QS certified manufacturing
SEALED POWER H559P Specifications
Product Attributes
| Bore | 3.7795 in (96.0000 mm) |
| Compression Distance | 1.577 |
| Head Illustration | 122 |
| Head Type | Recessed Head with Offset D Shape .095 Deep |
| Minimum Clearance | 0.0015 @ 2.250 From Top of Head |
| Note 1 | Standard Size |
| Part Material | Hypereutectic |
| Pin Diameter | 0.9122 in (23.17 mm) |
| Pin Offset | 0.04 in (1.016 mm) |
| Standard Size | Standard |
Additional Information
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| Remanufactured Part | N |
| UPC | 00724956308545 |
SEALED POWER H559P Part Interchanges
| Brand | Part Number |
|---|---|
| Badger | P779H-STD, P779H |
| Enginetech | P1322 |
| Ford | E3ZE-6108A, E3ZZ-6108A, E3ZE-6110C4A, E3ZZ-6108B |
| Ertel | 1151P |
| N/A | ZH30073, ZH30073 STD |
| Dana Commercial Vehicle Service Parts | 2242762 |
