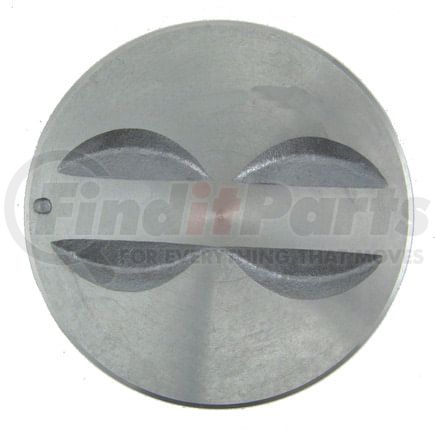

Sealed Power 1107NP - Sealed Power 1107NP Engine Piston Set
- Part Number
- 1107NP
- Manufacturer
- SEALED POWER
- Description
-
Sealed Power 1107NP Engine Piston Set
details
$27594
Package Price for 6 Units
@ $45.99 per unit
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
SEALED POWER part description
Product Description
Engine Piston Set
Features & Benefits
- Cast with FM132 Eutectic proprietary alloy
- Performance & dependability of original equipment pistons
- High quality aluminum
- Controlled casting & machining provides reliability, durability & long life
- Up-tilt ring grooves improve piston to ring sealing
- Provides great blow-by control
Product Attributes
| Oversized | No |
| Top Compression Ring Thickness | 0.0781 IN |
| Second Compression Ring Thickness | 0.0781 IN |
| Oil Ring Thickness | 0.1875 IN |
| Piston Pin Outside Diameter | 0.9278 IN |
| Assembly Lubricant Included | No |
| Bore Diameter | 3.8750 IN |
| Piston Material | Cast Aluminum |
| Compression Height | 1.780 IN |
| Head Illustration | 189 |
| Head Type | Flat Head w/4 valve reliefs |
| Minimum Clearance | 0.001 @ 2.570 from top of head |
| Part Description | Engine Piston |
| Pin Offset (Inch) | 0.06 |
| Pin Offset (MM) | 1.524 |
| Bore Diameter | 98.4 MM |
| Grade Type | Premium |
| Piston Pin Outside Diameter | 23.566 MM |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8409910010 |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Harmonized Tariff Code (HTS) | 8409915085 |
| UPC | 00614046908499 |
Fits Vehicles
- Chevrolet Suburban (1963-1966)
- Chevrolet P30 Series (1963-1965)
- Chevrolet P20 Series (1963-1965)
- Chevrolet P10 Van (1968-1969)
- Chevrolet P10 Series (1963-1967)
- Chevrolet Malibu (1964-1967)
- Chevrolet K20 Pickup (1963-1965)
- Chevrolet K10 Pickup (1963-1969)
- Chevrolet Impala (1963-1965)
- Chevrolet G20 Van (1967-1969)
- Chevrolet G10 Van (1966-1969)
- Chevrolet El Camino (1964-1969)
- Chevrolet Chevy II (1964-1966, 1968)
- Chevrolet Chevelle (1964-1969)
- Chevrolet Camaro (1967-1969)
- Chevrolet C30 Pickup (1963-1965)
- Chevrolet C20 Pickup (1963-1965)
- Chevrolet C10 Pickup (1963-1969)
- Chevrolet Biscayne (1963-1965)
- Chevrolet Bel Air (1963-1965)
- GMC P1000 (1966)
- GMC I2500 (1965)
- GMC I1500 (1965)
- Pontiac Beaumont (1964-1969)
- GMC I1000 (1964-1965)
- GMC 3500 (1963-1965)
- GMC 3000 (1963-1965)
- Chevrolet C30 Panel (1963-1965)
- Chevrolet C10 Panel (1963-1965)
- Chevrolet Nova (1969-1970)
- Checker Marathon (1964-1968)
- Pontiac Acadian (1964-1970)
- GMC PB1500 Series (1963-1965)
- GMC Suburban (1963-1966)
- GMC PB2500 Series (1963-1965)
- GMC PB1000 Series (1963-1966)
- GMC P15/P1500 Van (1967-1969)
- GMC K15/K1500 Pickup (1967-1969)
- GMC G25/G2500 Van (1967-1969)
- GMC G15/G1500 Van (1967-1969)
- GMC G1000 Series (1964-1966)
- GMC C15/C1500 Pickup (1967-1969)
- GMC 2500 Series (1963-1965)
- GMC 1500 Series (1963-1965)
- GMC 1000 Series (1963-1965)
